Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CD0G820RCAP ALUM POLY 82UF 20% 4V SMD Panasonic Electronic Components |
69 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 4 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-FD0K220RCAP ALUM POLY 22UF 20% 8V SMD Panasonic Electronic Components |
56 |
|
Datasheet |
SP-Cap FD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 8 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
-Photo-Taped-Size-G.jpg)
|

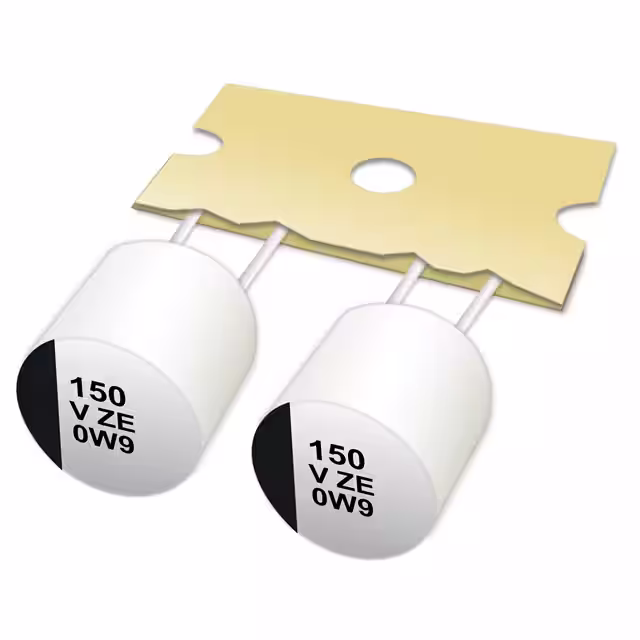

EEH-AZE1J560BCAP ALUM HYBRID 56UF 20% 63V TH Panasonic Electronic Components |
1,000 |
|
Datasheet |
ZE | Cut Tape (CT) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEF-LX0D561RCAP ALUM POLY 560UF 20% 2V SMD Panasonic Electronic Components |
59 |
|
Datasheet |
SP-Cap LX | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
-Photo-Taped-Size-G.jpg)
|
EEH-AZC1J680BCAP ALUM HYBRID 68UF 20% 63V TH Panasonic Electronic Components |
985 |
|
Datasheet |
ZC | Cut Tape (CT) | Active | Hybrid | 68 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
6SVQP82MCAP ALUM POLY 82UF 20% 6.3V SMD Panasonic Electronic Components |
1,000 |
|
Datasheet |
OS-CON™, SVQP | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 106 mA @ 120 Hz | 2.12 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEF-CX0J221RCAP ALUM POLY 220UF 20% 6.3V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEH-ZA1H220PCAP ALUM HYBRID 22UF 20% 50V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
ZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 110 mA @ 100 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
50SVPF10MCAP ALUM POLY 10UF 20% 50V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 50 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
25SEPF330MCAP ALUM POLY 330UF 20% 25V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPF | Bulk | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
