Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10SEPC270MD+SCAP ALUM POLY 270UF 20% 10V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPC | Tape & Box (TB) | Active | Polymer | 270 µF | ±20% | 10 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
|
2SEPC560M+TSSCAP ALUM POLY 560UF 20% 2.5V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPC | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 195 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

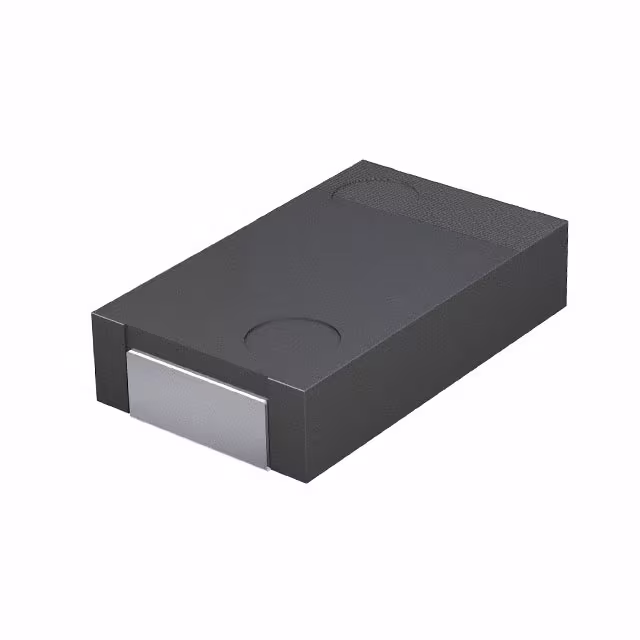

EEF-LS0E181RCAP ALUM POLY 180UF 20% 2.5V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap LS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
25SEPF180M+TSSCAP ALUM POLY 180UF 20% 25V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPF | Tape & Box (TB) | Active | Polymer | 180 µF | ±20% | 25 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 232.5 mA @ 120 Hz | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
EEF-HX0D471R4CAP ALUM POLY 470UF 20% 2V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HX0E471R6CAP ALUM POLY 470UF 20% 2.5V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 6mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
2SEPC470MZ+TSSCAP ALUM POLY 470UF 20% 2.5V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPC | Tape & Box (TB) | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 209 mA @ 120 Hz | 4.18 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
2SEPC330MZ+TSSCAP ALUM POLY 330UF 20% 2.5V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPC | Tape & Box (TB) | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 209 mA @ 120 Hz | 4.18 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
2SEPC100MZ+TSSCAP ALUM POLY 100UF 20% 2.5V TH Panasonic Electronic Components |
0 |
|
Datasheet |
OS-CON™, SEPC | Tape & Box (TB) | Active | Polymer | 100 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 209 mA @ 120 Hz | 4.18 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEF-LR0D221R4CAP ALUM POLY 220UF 20% 2V SMD Panasonic Electronic Components |
0 |
|
Datasheet |
SP-Cap, LR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.039" (1.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
