Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPSC001011406R8M00FIXED IND 6.8UH 31 MOHM SMD Pulse Electronics |
5,630 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | - | 5A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
BPSC000505304R7MS0FIXED IND 4.7UH 162 MOHM SMD Pulse Electronics |
3,869 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | - | 840mA | Shielded | 162mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
BPSC00060630100MS0INDUCTOR POWER Pulse Electronics |
1,500 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | - | 950mA | Shielded | 65mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|

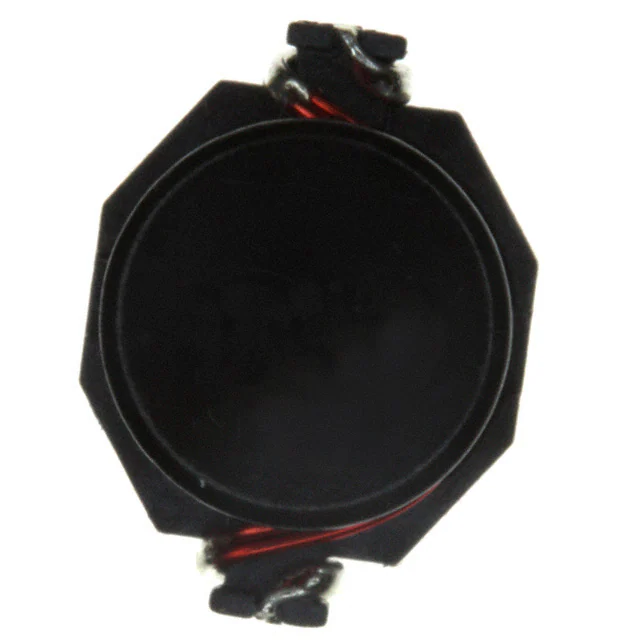

P0751.222NLTFIXED IND 2.2UH 6.1A 15 MOHM SMD Pulse Electronics |
5,767 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA5447.821NLTFIXED IND 820NH 8.5A 14MOHM SMD Pulse Electronics |
4,000 |
|
Datasheet |
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 8.5 A | 15.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
PA5403.103NLTFIXED IND 10UH 1.5A 385MOHM SMD Pulse Electronics |
3,987 |
|
Datasheet |
PA5403 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.5 A | 1.8A | Shielded | 385mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
PA5447.331NLTFIXED IND 330NH 14A 5.8MOHM SMD Pulse Electronics |
3,970 |
|
Datasheet |
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 14 A | 22A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5403.102NLTFIXED IND 1UH 5A 30 MOHM SMD Pulse Electronics |
3,825 |
|
Datasheet |
PA5403 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
PA5447.103NLTFIXED IND 10UH 2.3A 160MOHM SMD Pulse Electronics |
2,955 |
|
Datasheet |
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.3 A | 3.5A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5403.332NLTFIXED IND 3.3UH 3A 86 MOHM SMD Pulse Electronics |
1,004 |
|
Datasheet |
PA5403 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3 A | 3.8A | Shielded | 86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
