Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1170.142NLTFIXED IND 1.4UH 11A 4.2 MOHM SMD Pulse Electronics |
1,500 |
|
Datasheet |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±30% | 11 A | 13A | Shielded | 4.2mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
PA5121.231HLTFIXED IND 230NH 13A 0.65MOHM SMD Pulse Electronics |
2,634 |
|
Datasheet |
PA5121.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 230 nH | ±10% | 13 A | 23A | Shielded | 0.65mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.283" W (7.80mm x 7.20mm) | 0.211" (5.35mm) |
|
P0770.154NLTFIXED IND 150UH 250MA 2 OHM SMD Pulse Electronics |
2,345 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 250 mA | 270mA | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PGL6478.281HLTINDUCTOR PWR BEAD 260NH 15A SMD Pulse Electronics |
1,995 |
|
Datasheet |
PGL6478.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 280 nH | ±15% | 33 A | 23A | Unshielded | 450mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.140" (3.55mm) |
|

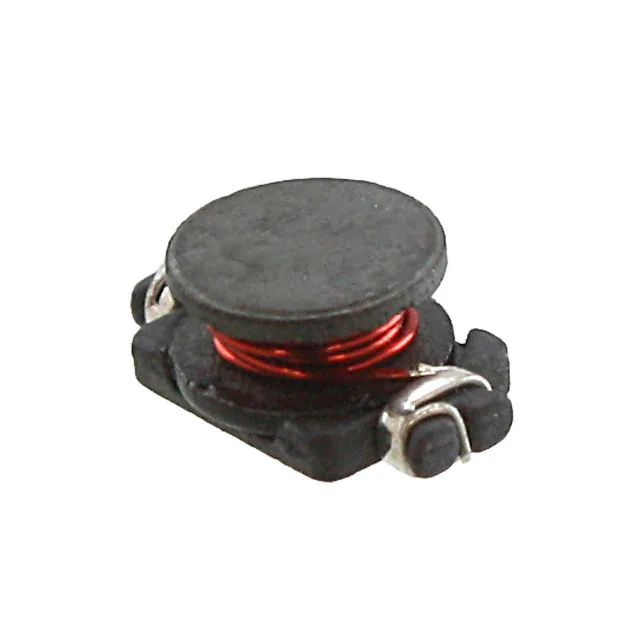

P0770.472NLTFIXED IND 4.7UH 1.5A 90 MOHM SMD Pulse Electronics |
5,559 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA5404.682NLTFIXED IND 6.8UH 5.5A 51.5MOHM SM Pulse Electronics |
3,966 |
|
Datasheet |
PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5.5 A | 8.5A | Shielded | 51.5mOhm Max | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5404.103NLTFIXED IND 10UH 3.8A 69 MOHM SMD Pulse Electronics |
3,725 |
|
Datasheet |
PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.8 A | 7.5A | Shielded | 69mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
P0250.105NLTFIXED IND 1MH 560MA 1.8 OHM SMD Pulse Electronics |
2,433 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±15% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
BPSC00131380100M00FIXED IND 10UH 22 MOHM SMD Pulse Electronics |
5,451 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 8.9A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
BPSC00131380470M00INDUCTOR POWER Pulse Electronics |
974 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | - | 3.6A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
