Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APCK000808096R8M70INDUCTOR POWER Pulse Electronics |
0 |
|
Datasheet |
APCK | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 3.2 A | 5.2A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
|
APCK00080809220M70INDUCTOR POWER Pulse Electronics |
0 |
|
Datasheet |
APCK | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.8 A | 3A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
PGL6076.900AHLTINDUCTOR PWR BEAD 90NH 137A Pulse Electronics |
0 |
|
Datasheet |
PGL6076.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±10% | 60 A | 137A | Unshielded | 0.155mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.299" W (8.30mm x 7.60mm) | 0.472" (12.00mm) |
|
|

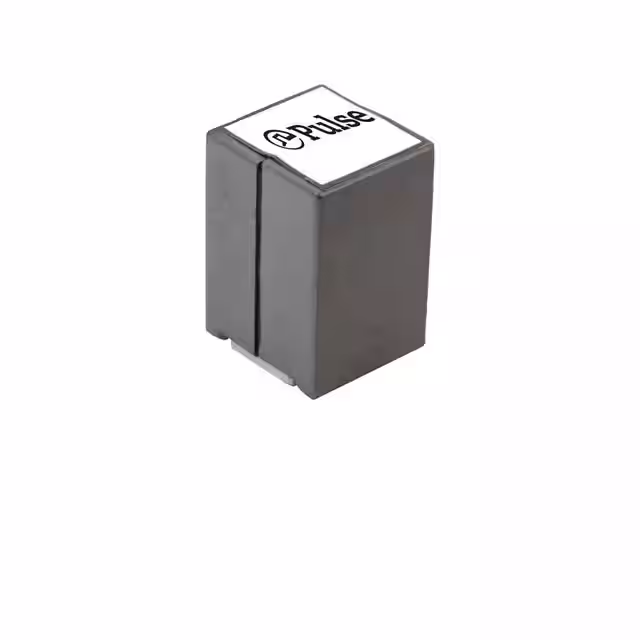

PGL6076.131AHLTINDUCTOR PWR BEAD 130NH 95A Pulse Electronics |
0 |
|
Datasheet |
PGL6076.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 130 nH | ±10% | 60 A | 95A | Unshielded | 0.155mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.299" W (8.30mm x 7.60mm) | 0.472" (12.00mm) |
|
|
PGL6076.321AHLTINDUCTOR PWR BEAD 320NH 37A Pulse Electronics |
0 |
|
Datasheet |
PGL6076.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±10% | 60 A | 37A | Unshielded | 0.155mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.299" W (8.30mm x 7.60mm) | 0.472" (12.00mm) |
|
PE-53807NLFIXED IND 26UH 450MA 620 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Bulk | Active | Toroidal | - | 26 µH | ±20% | 450 mA | - | Shielded | 620mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|

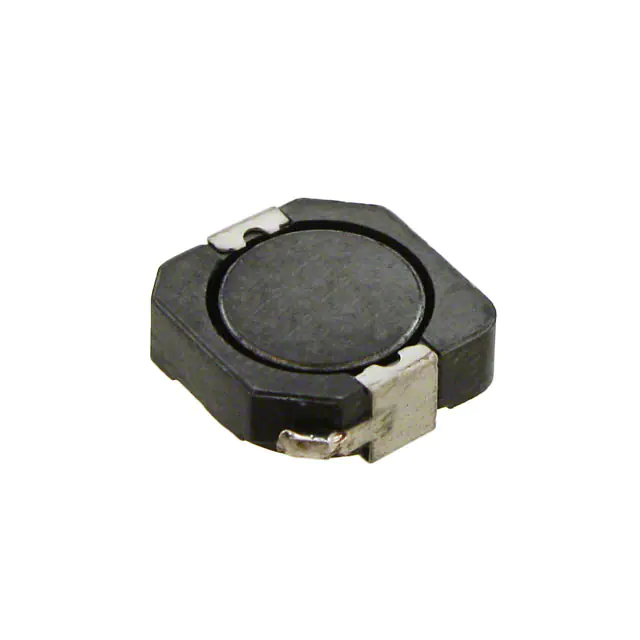

PF0560.154NLTFIXED IND 150UH 850MA 506MOHM SM Pulse Electronics |
0 |
|
Datasheet |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±25% | 850 mA | 1.15A | Shielded | 506mOhm Max | - | 5.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|

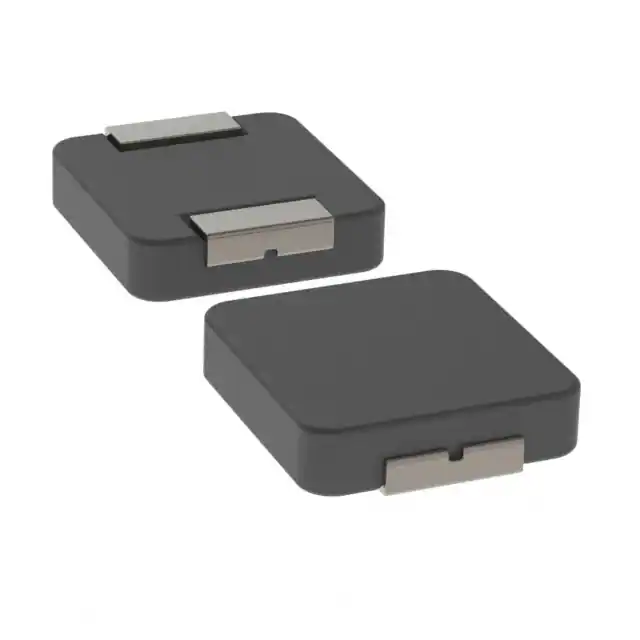

PM4346.152NLTFIXED IND 1.5UH 27A 3.3 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PM4346 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 27 A | 48A | Unshielded | 3.3mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PM4346.102NLTFIXED IND 1UH 29A 2.5 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PM4346 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 29 A | 50A | Unshielded | 2.5mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PE-53813SNLFIXED IND 55UH 560MA 500MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 55 µH | ±20% | 560 mA | - | Shielded | 500mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
