Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53827NLFIXED IND 248UH 830MA 600MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 248 µH | ±20% | 830 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|

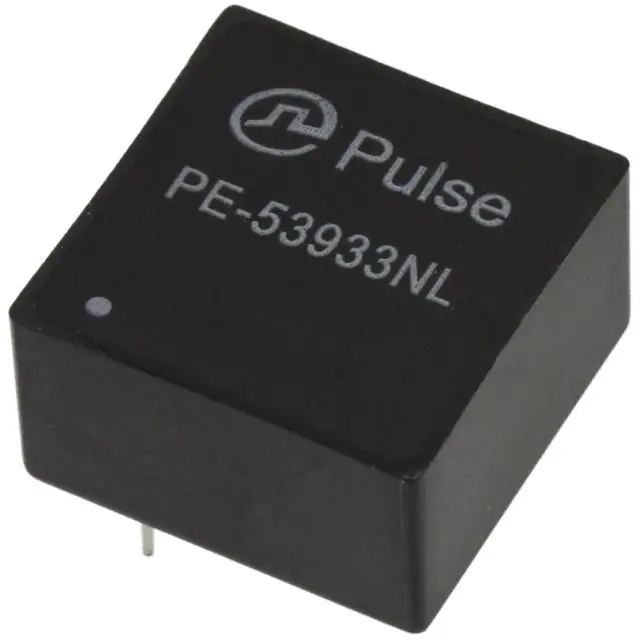

PE-53933NLFIXED IND 24UH 2.74A 70 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
|
PG0434.282NLTFIXED IND 2.8UH 19A 4.2 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.202NLTFIXED IND 2UH 23A 2.9 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 23 A | 24A | Shielded | 2.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.401NLTFIXED IND 450NH 45A 0.8 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 450 nH | ±20% | 45 A | 48A | Shielded | 0.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
AMDC001010J0100MQACLOSED MAGNETIC CIRCUIT TYPEMOLD Pulse Electronics |
0 |
|
Datasheet |
AMDC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 5.2 A | 10A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.437" (11.10mm) |
|
|
AMDC001010J0220MQACLOSED MAGNETIC CIRCUIT TYPEMOLD Pulse Electronics |
0 |
|
Datasheet |
AMDC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 22 µH | ±20% | 3.2 A | 7.3A | Shielded | 56mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.437" (11.10mm) |
|
|
AMDC001010J0150MQACLOSED MAGNETIC CIRCUIT TYPEMOLD Pulse Electronics |
0 |
|
Datasheet |
AMDC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 15 µH | ±20% | 4 A | 7.7A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.437" (11.10mm) |
|
|
PE-53826NLFIXED IND 377UH 680MA 1 OHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 377 µH | ±20% | 680 mA | - | Shielded | 1Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PM2204.182NLTFIXED IND 1.8UH 14A 10.2MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PM2204.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 14 A | 18.2A | Unshielded | 10.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.122" (3.10mm) |
