Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM4346.333NLTFIXED IND 33UH 5A 88 MOHM SMD Pulse Electronics |
970 |
|
Datasheet |
PM4346 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 5 A | 8A | Unshielded | 88mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|

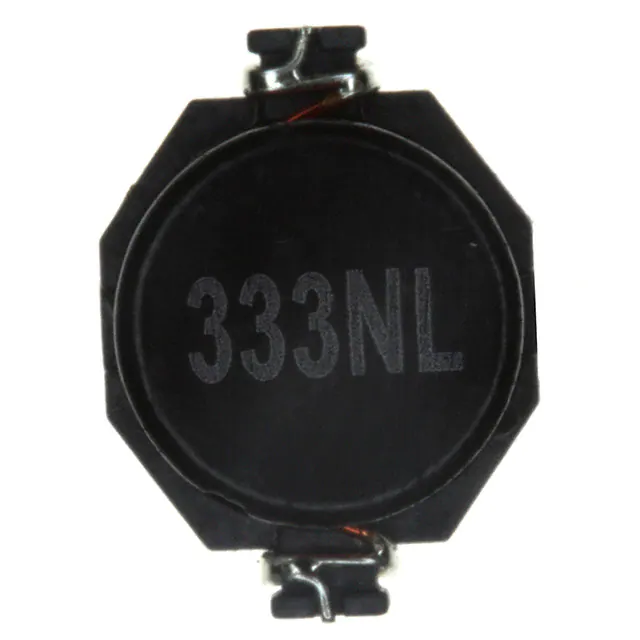

P0751.333NLTFIXED IND 33UH 2A 120 MOHM SMD Pulse Electronics |
5,754 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2 A | 2A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
P0751.683NLTFIXED IND 68UH 1.4A 240 MOHM SMD Pulse Electronics |
4,269 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.4 A | 1.4A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA4342.333NLTFIXED IND 33UH 3.5A 112 MOHM SMD Pulse Electronics |
3,693 |
|
Datasheet |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

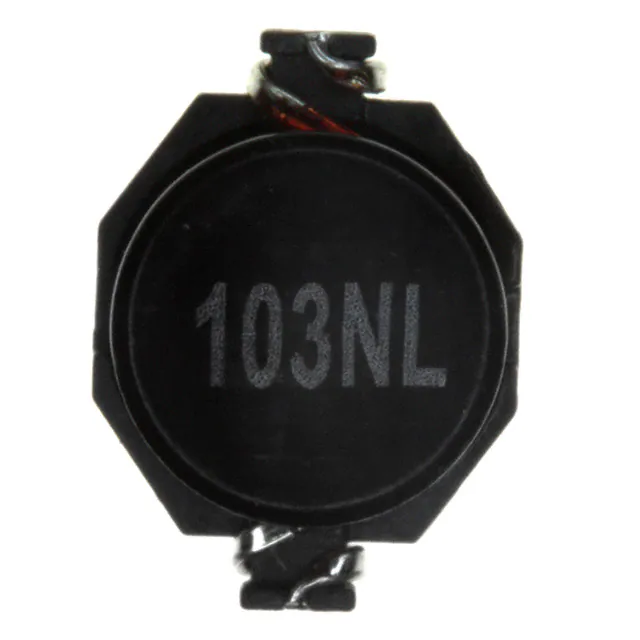

P0751.103NLTFIXED IND 10UH 3.8A 50 MOHM SMD Pulse Electronics |
2,165 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.8 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

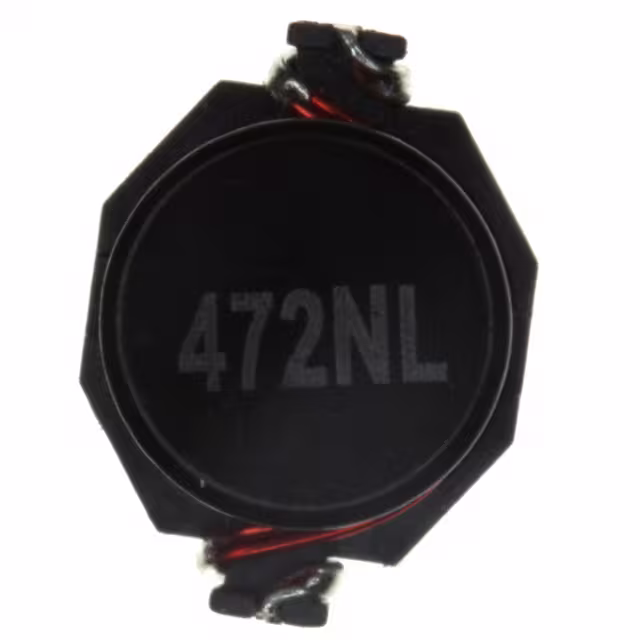

P0751.472NLTFIXED IND 4.7UH 4.8A 33 MOHM SMD Pulse Electronics |
1,607 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 4.8 A | 5.4A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA2607.211NLTFIXED IND 215NH 41A 0.29MOHM SMD Pulse Electronics |
640 |
|
Datasheet |
PA2607NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 215 nH | ±15% | 41 A | 48A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.295" (7.50mm) |
|

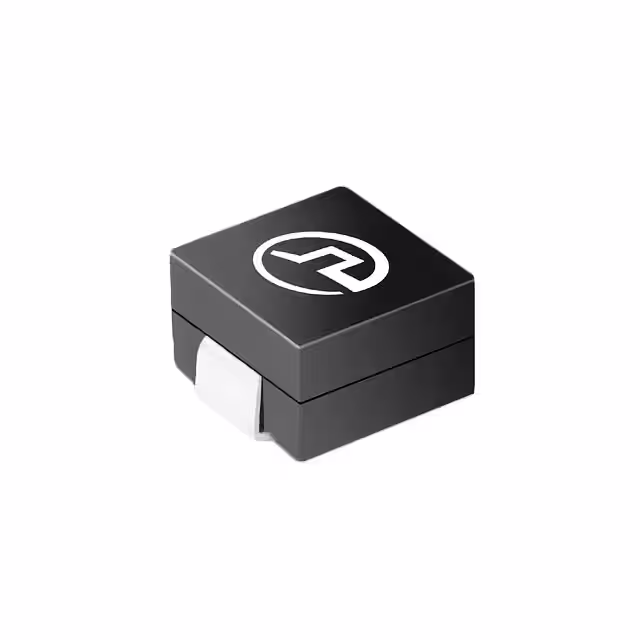

PA2891.321HLTFIXED IND 320NH 72A 0.22MOHM SMD Pulse Electronics |
4,032 |
|
Datasheet |
PA2981.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±10% | 72 A | 56A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - |
|
PA3288.221HLTFIXED IND 220NH 64A 0.29MOHM SMD Pulse Electronics |
3,332 |
|
Datasheet |
PA3288.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 64 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
|
PA2891.211HLFIXED IND 210NH 71A 0.22MOHM SMD Pulse Electronics |
1,594 |
|
Datasheet |
PA2981.XXXHL | Nonstandard | Tray | Active | - | - | 210 nH | ±10% | 71 A | 85A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - |
