Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|
BRHL2518T2R2MFIXED IND 2.2UH 1A 149.5MOHM SMD Taiyo Yuden |
1,365 |
|
Datasheet |
BR, HL Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.5A | Unshielded | 149.5mOhm Max | - | 300MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.059" (1.50mm) |
|
NR5040T6R8MFIXED IND 6.8UH 2.3A 63.7MOHM SM Taiyo Yuden |
36,466 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 2.6A | Shielded | 63.7mOhm Max | - | 21MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
-BR-Series.jpg)
|
BRL1608T150MFIXED IND 15UH 200MA 3.328OHM SM Taiyo Yuden |
29,513 |
|
Datasheet |
BR, L Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 200 mA | 150mA | Unshielded | 3.328Ohm Max | - | 32MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
BRC1608TR56MFIXED IND 560NH 760MA 95MOHM SMD Taiyo Yuden |
26,401 |
|
Datasheet |
BR, C Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 760 mA | 1.15A | Unshielded | 95mOhm | - | 170MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

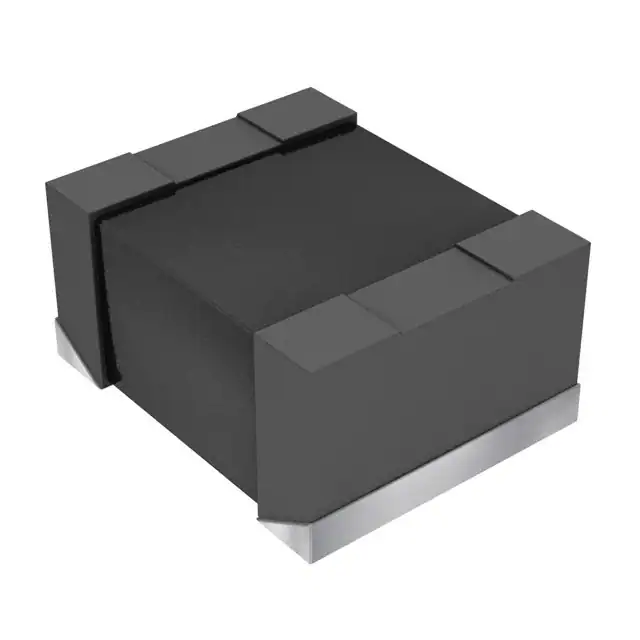

MBKK1608H4R7MFIXED IND 4.7UH 500MA 730MOHM SM Taiyo Yuden |
13,735 |
|
Datasheet |
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 500 mA | 370mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
BRC1608TR77MFIXED IND 770NH 660MA 110MOHM SM Taiyo Yuden |
9,368 |
|
Datasheet |
BR, C Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 770 nH | ±20% | 660 mA | 1A | Unshielded | 110mOhm | - | 150MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
BRL2518T1R0MFIXED IND 1UH 1A 104 MOHM SMD Taiyo Yuden |
8,989 |
|
Datasheet |
BR, L Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1 A | 1.6A | Unshielded | 104mOhm Max | - | 130MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.047" (1.20mm) |
|
|
BRL2518T2R2MFIXED IND 2.2UH 850MA 175.5 MOHM Taiyo Yuden |
8,423 |
|
Datasheet |
BR, L Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 850 mA | 1A | Unshielded | 175.5mOhm Max | - | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.047" (1.20mm) |
|
NRS5024T1R5NMGJFIXED IND 1.5UH 3.6A 22 MOHM SMD Taiyo Yuden |
7,512 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.6 A | 5.2A | Shielded | 22mOhm Max | - | 67MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
|
NRS5024T100MMGJFIXED IND 10UH 1.2A 125 MOHM SMD Taiyo Yuden |
7,210 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.7A | Shielded | 125mOhm Max | - | 21MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
