Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-MCoil-MC-Series.jpg)
|
MCHK2012TR24MFIXED IND 240NH 4.32A 24MOHM SMD Taiyo Yuden |
1,854 |
|
Datasheet |
MCOIL™, MC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 4.32 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|

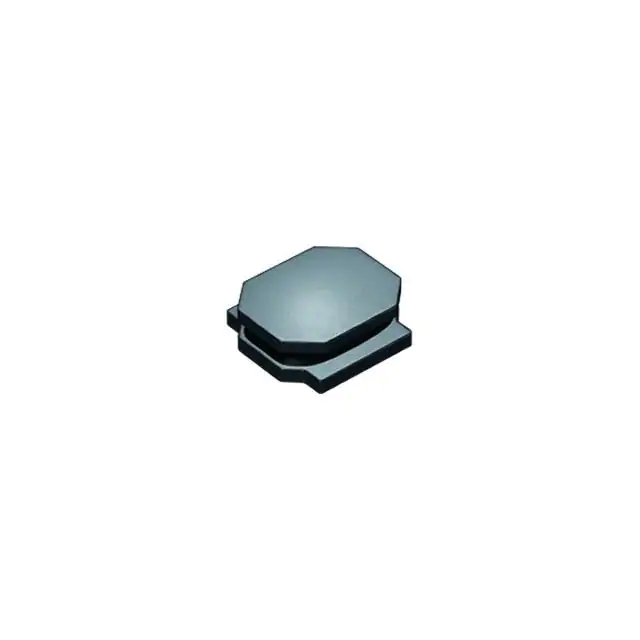

LSXND4040MKL1R5NDGFIXED IND 1.5UH 2A 61.2 MOHM SMD Taiyo Yuden |
8,896 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2 A | 2.3A | Shielded | 61.2mOhm Max | - | 90MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
NRH2410T4R7MNVFIXED IND 4.7UH 670MA 348MOHM SM Taiyo Yuden |
6,438 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 670 mA | 880mA | Shielded | 348mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
-2,00mm.jpg)
|
CB2518T1R0MVFIXED IND 1UH 1.25A 78 MOHM SMD Taiyo Yuden |
5,910 |
|
- |
CB | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.25 A | 1.2A | Unshielded | 78mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
NRS4012T2R2MDGJVFIXED IND 2.2UH 1.9A 72 MOHM SMD Taiyo Yuden |
5,693 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.65A | Shielded | 72mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
MCHK1608TR56MKNFIXED IND 560NH 2.6A 55MOHM SMD Taiyo Yuden |
3,360 |
|
Datasheet |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 560 nH | ±20% | 2.6 A | - | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
LBR2518T101KVFIXED IND 100UH 80MA 1.89OHM SMD Taiyo Yuden |
2,292 |
|
- |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 100 µH | ±10% | 80 mA | - | Unshielded | 1.89Ohm | - | 9MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
NRH2412T2R2MNGHVFIXED IND 2.2UH 1A 168 MOHM SMD Taiyo Yuden |
1,484 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.7A | Shielded | 168mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
|
LBR2518T4R7MVFIXED IND 4.7UH 345MA 100MOHM SM Taiyo Yuden |
1,211 |
|
- |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 4.7 µH | ±20% | 345 mA | - | Unshielded | 100mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
-BR-Series.jpg)
|
BRL2012TR47MFIXED IND 470NH 1.05A 117MOHM SM Taiyo Yuden |
5,195 |
|
Datasheet |
BR, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 1.05 A | 1.1A | Unshielded | 117mOhm Max | - | 350MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
