Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-RF18NGFBFIXED IND 18NH 240MA 700MOHM SMD Panasonic Electronic Components |
108 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 18 nH | ±2% | 240 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 2.2GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-FB391JFFIXED IND 390UH 70MA 19 OHM SMD Panasonic Electronic Components |
356 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±5% | 70 mA | - | Unshielded | 19Ohm Max | 40 @ 796kHz | 3.3MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

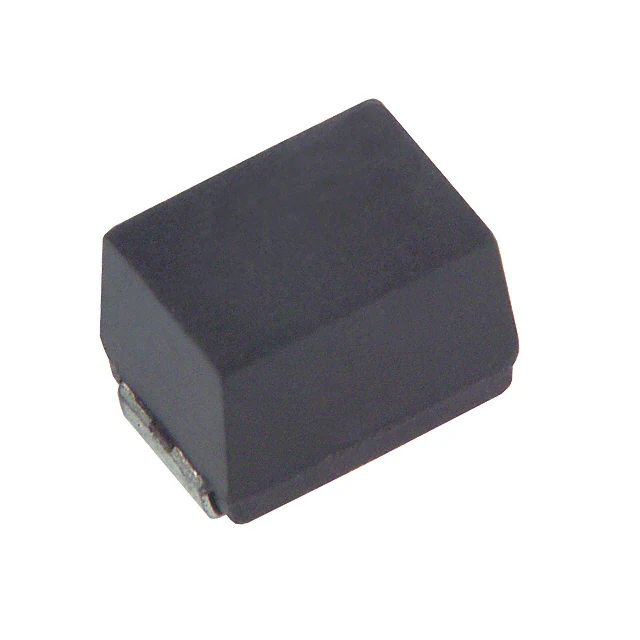

ELJ-PB270KFFIXED IND 27UH 270MA 1.2 OHM SMD Panasonic Electronic Components |
335 |
|
Datasheet |
PB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±10% | 270 mA | - | Unshielded | 1.2Ohm Max | 10 @ 2.52MHz | 11MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

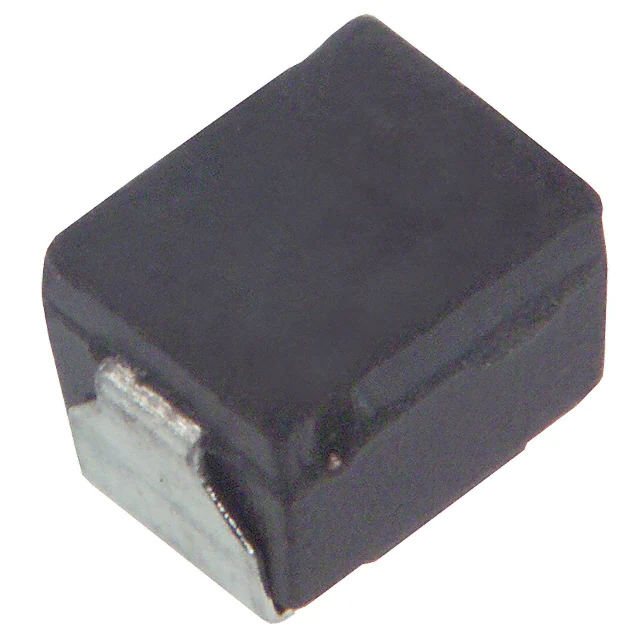

ELJ-EA150KFFIXED IND 15UH 145MA 320MOHM SMD Panasonic Electronic Components |
589 |
|
Datasheet |
EA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±10% | 145 mA | - | Shielded | 320mOhm Max | 10 @ 2.52MHz | 25MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

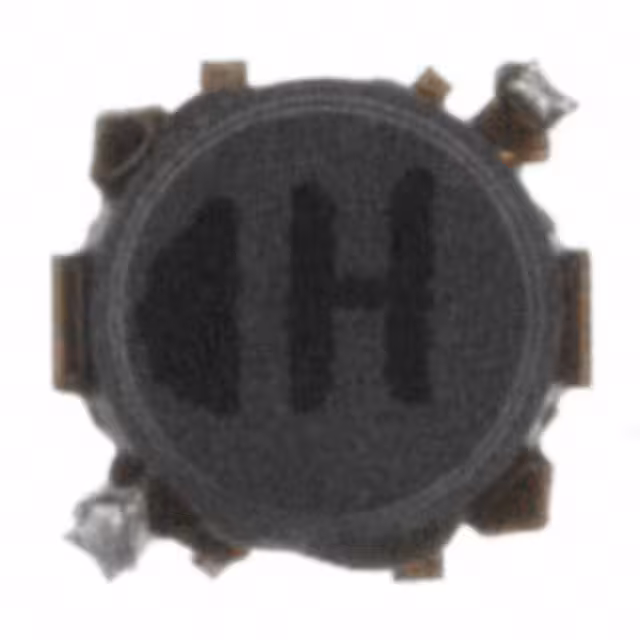

ELL-VEG4R7NFIXED IND 4.7UH 770MA 240MOHM SM Panasonic Electronic Components |
530 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 770 mA | 750mA | Shielded | 240mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ELJ-FBR56MFFIXED IND 560NH 560MA 420MOHM SM Panasonic Electronic Components |
300 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 nH | ±20% | 560 mA | - | Unshielded | 420mOhm Max | 30 @ 25.2MHz | 120MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
ELL-6PG3R9NFIXED IND 3.9UH 1.9A 51 MOHM SMD Panasonic Electronic Components |
500 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±30% | 1.9 A | 1.6A | Shielded | 51mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
ELL-4FG3R3NAFIXED IND 3.3UH 1.22A 110MOHM SM Panasonic Electronic Components |
380 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.22 A | 1.1A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG1R5NAFIXED IND 1.5UH 1.7A 60 MOHM SMD Panasonic Electronic Components |
145 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.7 A | 1.6A | Shielded | 60mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-6PG270MFIXED IND 27UH 800MA 260MOHM SMD Panasonic Electronic Components |
62 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 800 mA | 730mA | Shielded | 260mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
