Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-VGG330MFIXED IND 33UH 340MA 1.33OHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 340 mA | 450mA | Shielded | 1.33Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG470MFIXED IND 47UH 270MA 2.1 OHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 270 mA | 350mA | Shielded | 2.1Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
.jpg)
|

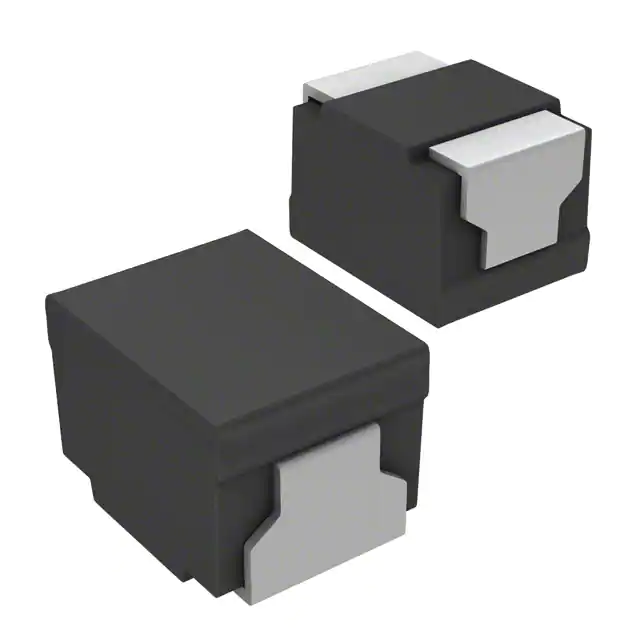

ELJ-DA470JFFIXED IND 47UH 105MA 5.9 OHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±5% | 105 mA | - | Unshielded | 5.9Ohm Max | 21 @ 2.52MHz | 10MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA560JFFIXED IND 56UH 100MA 6.5 OHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±5% | 100 mA | - | Unshielded | 6.5Ohm Max | 21 @ 2.52MHz | 8.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA680JFFIXED IND 68UH 85MA 9 OHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±5% | 85 mA | - | Unshielded | 9Ohm Max | 21 @ 2.52MHz | 7.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA101JFFIXED IND 100UH 70MA 13 OHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±5% | 70 mA | - | Unshielded | 13Ohm Max | 24 @ 796kHz | 7MHz | - | -20°C ~ 85°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-ND27NJFFIXED IND 27NH 455MA 340MOHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
ND | 0805 (2015 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 27 nH | ±5% | 455 mA | - | Unshielded | 340mOhm Max | 15 @ 100MHz | 2.5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2015 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.050" (1.28mm) |
|
ELJ-PE2N2KFAFIXED IND 2.2NH 2.1A 30 MOHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.2 nH | ±10% | 2.1 A | - | Unshielded | 30mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE3N3KFAFIXED IND 3.3NH 2.1A 40 MOHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.3 nH | ±10% | 2.1 A | - | Unshielded | 40mOhm Max | 8 @ 100MHz | 5.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-PE3N9KFAFIXED IND 3.9NH 2.1A 40 MOHM SMD Panasonic Electronic Components |
0 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.9 nH | ±10% | 2.1 A | - | Unshielded | 40mOhm Max | 9 @ 100MHz | 5.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
