Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

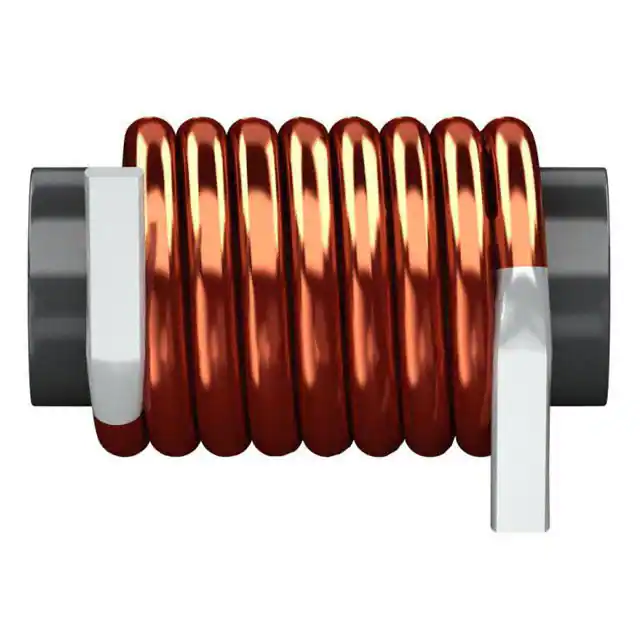

B82116B1224A010CMC 1.8UH 21A 1LN TH |
0 |
|
Datasheet |
B82116B | Radial, Horizontal Cylinder (Open) | Tray | Obsolete | - | Ferrite | 1.8 µH | ±20% | 21 A | - | Unshielded | 1.4mOhm | - | - | - | -40°C ~ 150°C | 1 MHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 0.701" Dia x 0.945" L (17.80mm x 24.00mm) | - |
|
|
B82116B2625A010CMC 3.3UH 10A 1LN TH |
0 |
|
Datasheet |
B82116B | Radial, Horizontal Cylinder (Open) | Tray | Obsolete | - | Ferrite | 3.3 µH | ±20% | 10 A | - | Unshielded | 3.7mOhm | - | - | - | -40°C ~ 140°C | 1 MHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 0.394" Dia x 0.984" L (10.00mm x 25.00mm) | - |
|
|
B82116B2828A010CMC 3.4UH 25A 1LN TH |
0 |
|
Datasheet |
B82116B | Radial, Horizontal Cylinder (Open) | Tray | Obsolete | - | Ferrite | 3.4 µH | ±20% | 25 A | - | Unshielded | 2.6mOhm | - | - | - | -40°C ~ 170°C | 1 MHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 0.492" Dia x 1.083" L (12.50mm x 27.50mm) | - |
|
NRS8040T100MJGNFIXED IND 10UH 3.1A 44.2MOHM SMD |
0 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.8A | Shielded | 44.2mOhm Max | - | 22MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T150MJGNFIXED IND 15UH 2.4A 65 MOHM SMD |
0 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.9A | Shielded | 65mOhm Max | - | 16MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T4R7NJGNFIXED IND 4.7UH 4.1A 23.4MOHM SM |
0 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.4A | Shielded | 23.4mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
NRS8040T6R8NJGNFIXED IND 6.8UH 3.7A 32.5MOHM SM |
0 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4.4A | Shielded | 32.5mOhm Max | - | 24MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LHL06NB102KFIXED IND 1MH 65MA 10 OHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1 mH | ±10% | 65 mA | - | Unshielded | 10Ohm Max | 50 @ 252kHz | 2.4MHz | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.433" (11.00mm) |
|
|
LHL06TB123JFIXED IND 12MH TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 12 mH | ±5% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | - | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.433" (11.00mm) |
|
|
LHL06TB153JFIXED IND 15MH TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 15 mH | ±5% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | - | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.433" (11.00mm) |
|
|
LHL06TB471KAFIXED IND 470UH 100MA 4.4 OHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 470 µH | ±10% | 100 mA | - | Unshielded | 4.4Ohm Max | 50 @ 796kHz | 3.4MHz | - | -25°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.433" (11.00mm) |
|
|
LHL06TB592JFIXED IND 5.9MH TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 5.9 mH | ±5% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | - | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.433" (11.00mm) |
|
|
LHL06TB682JLFIXED IND 6.8MH 26MA 74 OHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 6.8 mH | ±5% | 26 mA | - | Unshielded | 74Ohm Max | 50 @ 252kHz | 900kHz | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.433" (11.00mm) |
|
|
LHL08NB100KSFIXED IND 10UH 2.4A 41 MOHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 10 µH | ±10% | 2.4 A | - | Unshielded | 41mOhm Max | 65 @ 2.52MHz | 17MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
|
LHL08NB102JSFIXED IND 1MH 250MA 2.7 OHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1 mH | ±5% | 250 mA | - | Unshielded | 2.7Ohm Max | 55 @ 252kHz | 1.5MHz | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
|
LHL08NB103JSFIXED IND 10MH 70MA 32 OHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 10 mH | ±5% | 70 mA | - | Unshielded | 32Ohm Max | 60 @ 79.6kHz | 480kHz | - | -25°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
|
LHL08NB121KSFIXED IND 120UH 700MA 360MOHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 120 µH | ±10% | 700 mA | - | Unshielded | 360mOhm Max | 25 @ 796kHz | 5.2MHz | - | -25°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
|
LHL08NB150KSFIXED IND 15UH 2A 53 MOHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 15 µH | ±10% | 2 A | - | Unshielded | 53mOhm Max | 50 @ 2.52MHz | 13MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
|
LHL08NB152JSFIXED IND 1.5MH 200MA 4.1 OHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.5 mH | ±5% | 200 mA | - | Unshielded | 4.1Ohm Max | 55 @ 252kHz | 1.3MHz | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
|
LHL08NB180KSFIXED IND 18UH 1.9A 60 MOHM TH |
0 |
|
Datasheet |
LH, L Type | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 18 µH | ±10% | 1.9 A | - | Unshielded | 60mOhm Max | 50 @ 2.52MHz | 12MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
