RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SR42W009RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz | Chip | 2 | 1.5 | -7dB | 5dBi | - | - | Solder | - | - | - | Surface Mount | 0.173" (4.40mm) | WLAN |
|
GHX-328XRS3BANT LPWA WHIP RP-SMA PLUG FEMALE |
0 |
|
Datasheet |
328 | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 1.6, 1.7 | -12.7dB, -11.7dB | 2.7dBi, 2.7dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 1.811" (46.00mm) | ISM, LoRaWAN, LPWA, SigFox | |
|
|
21442910115G EXTERNAL ANTENNA_HINGED_W_F |
0 |
|
Datasheet |
214429 | Bag | Obsolete | Cellular | Wide Band | 829MHz, 2.2GHz, 3.75GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz ~ 4.2GHz, 3.3GHz, 4.4GHz ~ 5GHz | Blade, Tilt | 4 | - | -10dB, -5dB | 1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | LTE |
|
|
21442910015G EXTERNAL ANTENNA_HINGED_W_M |
0 |
|
Datasheet |
214429 | Bag | Obsolete | Cellular | Wide Band | 829MHz, 2.2GHz, 3.75GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz ~ 4.2GHz, 3.3GHz, 4.4GHz ~ 5GHz | Blade, Tilt | 4 | - | -10dB, -5dB | 1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | LTE |
|
ANT-W63RPC1-UFL-50RF ANT WIFI 6GHZ FLEX UFL 50MM |
0 |
|
Datasheet |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
X9001248-4GMSMB2500LANTENNA LTE MAGNETIC 2.5M, LMR10 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -5.2dB, -5.8dB, -6dB | -0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi | - | Cable - 2.5m | SMA Male | IP65 | - | - | Magnetic | 4.409" (112.00mm) | 2G, 3G, 4G, Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
|
GWX-100BRS3BANT LPWA WHIP RP-SMA PLUG FEMALE |
0 |
|
Datasheet |
100 | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Tilt | 2 | 1.8, 1.9 | -10.9dB, -10.2dB | 2.3dBi, 2.2dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 4.870" (123.70mm) | ISM, LoRaWAN, LPWA, SigFox | |
|
|
TWX-721XSA3BANT WIFI 6E BLADE SMA PLUG MALE |
0 |
|
Datasheet |
721 | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.4, 1.9, 1.6 | -15.6dB, -10dB, -12.7dB | 2.4dBi, 3.8dBi, 5dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 5.906" (150.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E | |
|
|
ZWX-721XRS2BANT 5G BLADE RP-SMA PLUG FEMALE |
0 |
|
Datasheet |
721 | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz | Blade, Tilt | 7 | 2, 2.9, 2.7, 2, 3.3 | -9.5dB, -6.2dB, -6.8dB, -9.5dB, -5.4dB | 2.1dBi, 4.4dBi, 2.8dBi, 3.7dBi, 4.8dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 5.906" (150.00mm) | 2G, 3G, 4G, 5G, LTE | |
|
|
TWX-100BSA3BANT WIFI 6E WHIP SMA PLUG MALE |
0 |
|
Datasheet |
100 | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.5, 1.6, 3 | -14dB, -12.7dB, -6dB | 2.6dBi, 4.3dBi, 4.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 4.870" (123.70mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E | |
|
|
YWX-100BRS2BANT 4G WHIP RP-SMA PLUG FEMALE |
0 |
|
Datasheet |
100 | Active | Cellular | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz | Whip, Tilt | 3 | 2.4, 2.2, 2.7 | -7.7dB, -8.5dB, -6.8dB | 0dBi, -0.1dBi, 0dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 4.870" (123.70mm) | 2G, 3G, 4G, 5G, LTE | |
|
1002292F0-AA10L0086ANTENNA ASSY, PENTA 86 |
0 |
|
Datasheet |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 796MHz, 2.2GHz | 698MHz ~ 894MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2.8, 3 | - | 1.2dBi, 5dBi | 2 W | Cable - 86mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | Cellular, LTE-M, NB-IoT, loRa, SigFox |
|
|
ST0543-00-N01-URF ANTENNA PASSIVE PATCH 1575.42 |
0 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | -1dBi | - | - | Pin | - | - | - | - | 0.157" (4.00mm) | GPS |
|
W1089ANT EXT 779-787MHZ SMA MALE |
0 |
|
Datasheet |
Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Whip, Center-Fed Double | 1 | 2 | - | 1.51dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | ISM |
|
A10340RF ANT 850/900MHZ PCB TRACE SLD |
0 |
|
Datasheet |
Calvus | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 3.1 | -6dB | 1.7dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GSM, UMTS |
|

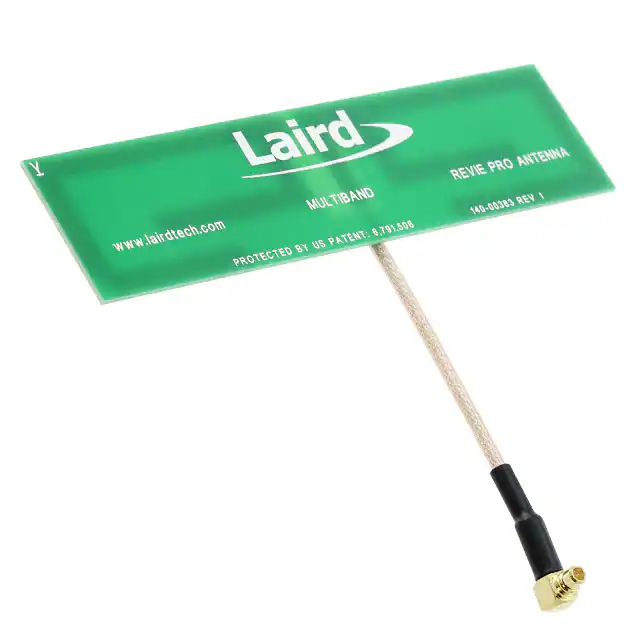

MAF95050RF ANT 868MHZ/900MHZ PCB TRACE |
0 |
|
Datasheet |
Revie Pro | Bulk | Obsolete | Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 900MHz, 1.8GHz, 1.9GHz | 868MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 4 | 2.5 | - | 1dBi | - | Cable - 47mm | MMCX | - | - | - | Surface Mount | 0.059" (1.50mm) | GSM, WiMax™ |
|
TQX-900ARIGHT ANGLE LOW PROFILE ANTENNA |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Right Angle | 1 | - | - | - | - | - | RP-SMA | - | - | - | Connector Mount | - | General Purpose |
|
TQX-900AISTRAIGHT LOW PROFILE ANTENNA R |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | - | - | - | RP-SMA | - | - | - | Connector Mount | - | General Purpose |
|
|
ANLTE2-50HRALTE ANTENNA 7" 3.5 DBI 50 PK |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | - | - | - | Whip, Tilt | - | - | - | 3.5dBi | - | - | Connector | - | - | - | Connector Mount | 7.000" (177.80mm) | LTE |
|
RST-MA13-49-1M-GE-001RF ANT 850MHZ/868MHZ WHIP STR |
0 |
|
Datasheet |
RST | Bulk | Active | Cellular | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2.5 | - | 2dBi | - | - | SMA Male | IP66, IP67 | - | - | Connector Mount | 1.929" (49.00mm) | GSM, LORA |
