RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1399.59.00031399.59.0003 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 2.4GHz, 2.595GHz, 3.6GHz, 5.437GHz | 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.975GHz | Dome | 4 | 1.5, 1.7, 1.8, 2 | - | 1.5dBi, 1.5dBi, 2dBi, 4dBi | - | Cable - 1m | SMA Male (3) | - | - | - | Panel Mount | 1.307" (33.20mm) | 802.11b/g/a/h/p/-c, GLONASS, GPS, LTE |
|
|
FMANKIT1010ANTENNA KIT 8 DBI 10 FT LOW LOSS |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.6 | - | 8dBi | 50 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 57.300" (145.54cm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
FMANKIT1032ANTENNA KIT 6 DBI 6 FT LOW LOSS |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 50 W | Cable - 1.8288m | N Type Female | - | - | - | Bracket Mount | 39.764" (1010.00mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
FMANKIT1017ANTENNA KIT 8 DBI 10 FT LOW LOSS |
0 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 63.500" (161.29cm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
Y4063RF ANT 418MHZ YAGI N FEM BRKT MT |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 418MHz | 406MHz ~ 430MHz | Yagi | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 20.157" (512.00mm) | - |
|
X1005324-LWS5SX10A2ANTENNA GNSS / LTE MIMO / WIFI |
0 |
|
Datasheet |
- | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz, 2.45GHz, 5.4875GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Dome | 8 | 1.8, 2, 3.5 | - | 3.8dBi, 3dBi, 3dBi, 3.5dBi, 4.9dBi, 4.1dBi, 4.6dBi, 6.6dBi | - | Cable - 1m, LNA | SMA Male (2), RP-SMA Male (1) | IPX7 | - | - | Adhesive | 2.500" (63.50mm) | GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
|
FM51YA1017ANTENNA TYPE N JACK 880 MHZ-960 |
0 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 11dBi | 150 W | Cable - 914.4mm | N Type Female | IP55 | - | - | Bracket Mount | 2.000" (50.80mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|
ARM42112MMRF ANT 829MHZ/1.582GHZ MOD MAGNT |
0 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2, 2.5 | - | 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (1) | IP67 | - | - | Magnetic | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
|
1399.99.01191399.99.0119 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 744MHz, 875MHz, 1.94GHz, 2.545GHz | 698MHz ~ 790MHz, 790MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz | Module | 4 | 2, 2.2 | - | 4dBi, 4dBi, 6dBi, 6dBi | - | Cable - 170mm, 230mm | SMA Male (2) | IP67, IP69 | - | - | Chassis Mount | 3.465" (88.00mm) | General Purpose |
|
|
1399.26.00531399.26.0053 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 860MHz, 945MHz, 1.94GHz, 2.495GHz | 790MHz ~ 930MHz, 930MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Dome | 5 | 1.7, 2, 2.5 | - | 2dBi, 2dBi, 6dBi, 4dBi | - | Cable - 1m, LNA | TNC Female | - | - | - | Panel Mount | 1.307" (33.20mm) | GNSS, LTE |
|
|
HG2408U-RTPANTMASTMNT OMNI 2.4GHZ 8DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8dBi | 100 W | - | Screw-Mount | - | - | - | Mast Mount | 16.000" (406.40mm) | 802.11b/g, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
|
HG5816SXP-090ANTPANEL 5.1-5.8GHZ 16DBI |
0 |
|
- |
HG | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Sector | 1 | 1.8 | - | 16dBi | 50 W | - | N Type Female (4) | - | - | - | Bracket Mount | 2.400" (60.96mm) | 802.11a/n, Wi-Fi, WiMax, WLAN |
|
Y1363RF ANT 143MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 143MHz | 136MHz ~ 150MHz | Yagi, 3-Element | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 41.500" (105.41cm) | - |
|

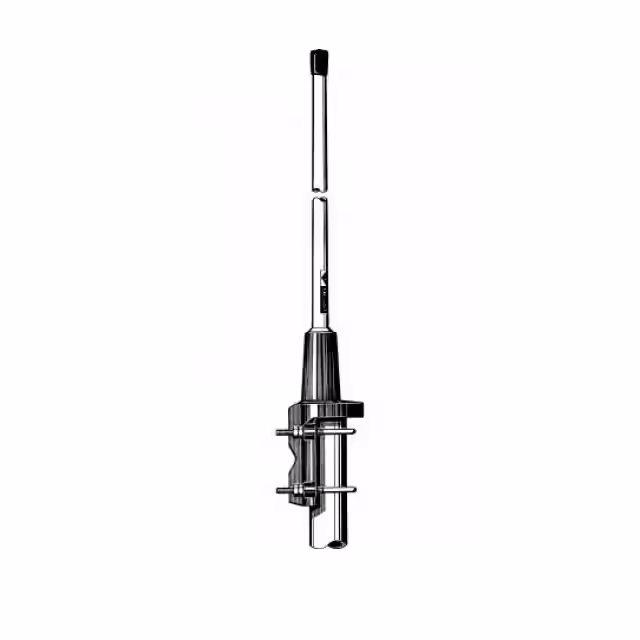

110000087CXL 70-1LW/I |
0 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 405MHz | 380MHz ~ 430MHz | Whip, Straight | 1 | 1.5 | - | 2.2dBi | 200 W | - | N Type Female | IP66 | - | - | Bracket Mount | 26.772" (680.00mm) | - |
|
|
1356.35.00891356.35.0089 |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.025GHz, 5.31GHz, 5.7025GHz | 4.9GHz ~ 5.15GHz, 5.15GHz ~ 5.47GHz, 5.47GHz ~ 5.935GHz | Module | 3 | 1.6, 2 | - | 11.5dBi, 12.5dBi, 13dBi | 30 W | - | QMA Female (2) | IP66, IP67 | - | - | Panel Mount | 3.976" (101.00mm) | Wi-Fi |
|
|
S8658WPR-91RTNMANT 865-965MHZ 9DBI RH RP-TNCM-M |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S8658WPL-91RTNMANT 865-965MHZ 9DBI LH N-FEMALE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 912MHz | 865MHz ~ 960MHz | Flat Panel | 1 | 1.4 | - | 8.5dBi | 3 W | - | TNC Male | IP54 | - | - | Stud | 1.339" (34.00mm) | General Purpose |
|
|
FM51OM1016ANTENNA TYPE N JACK 900 MHZ-928 |
0 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 63.500" (161.29cm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, WLAN |
|
|
FM51OM1019ANTENNA TYPE N JACK 900 MHZ-928 |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.6 | - | 8dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 57.300" (145.54cm) | IoT, ISM, LoRa, LPWAN, M2M, WLAN |
|
|
FMANKIT1033ANTENNA KIT 6 DBI 10 FT LOW LOSS |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 50 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 39.764" (1010.00mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
