RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALA.01.07.0095ARF ANT 1.575GHZ PCB TRACE IPEX |
232 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.54GHz ~ 1.61GHz | PCB Trace | 1 | 2 | -10dB | 3.1dBi | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Chassis Mount | 0.020" (0.50mm) | GPS |
|
TD.95.6H31G868/915MHZ DIPOLE ANTENNA N-TYPE |
104 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Blade | 2 | - | - | 1.33dBi, 1.54dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 8.976" (228.00mm) | ISM, LoRa, Sigfox |
|

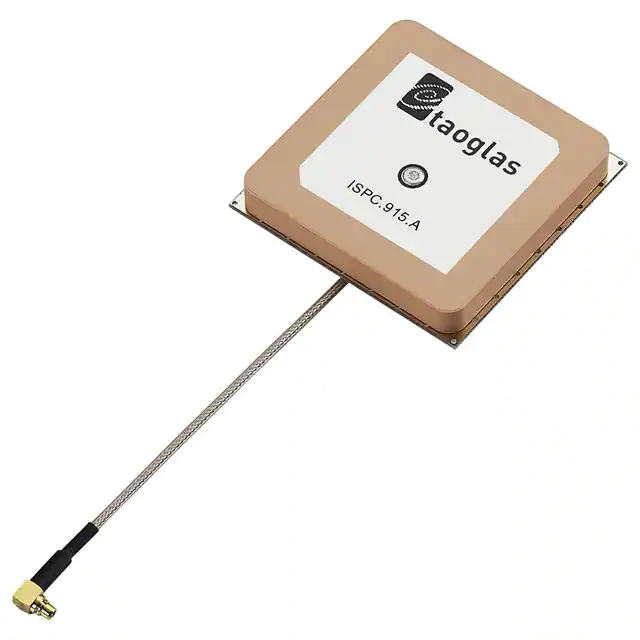

ISPC.91A.09.0092ERF ANT 915MHZ CER PATCH MMCX ML |
202 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -9.7dB | 5.21dBi | 5 W | - | MMCX Male | - | - | - | - | 0.256" (6.50mm) | - |
|

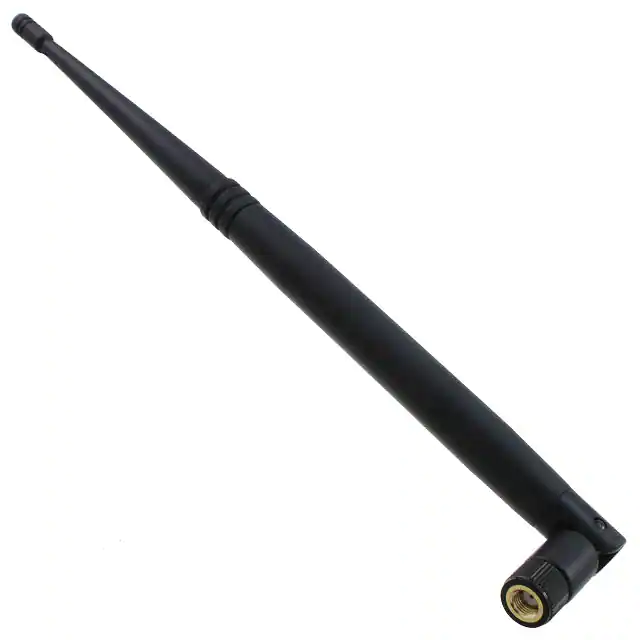

S171AH-2450SRF ANT 2.4GHZ WHIP TILT RP-SMA |
245 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 10.551" (268.00mm) | - |
|
WA.500W.301151RF ANT 2.4GHZ/5.8GHZ MODULE ADH |
108 |
|
Datasheet |
Stingray | Bag | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 2 | 1.92 | - | 5.382dBi, 4.308dBi | - | Cable - 3m | RP-SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | Wi-Fi, Zigbee™ |
|
ANT-GNCP-C357L160RF ANT GNSS GPS L1 37X37 LNA UFL |
161 |
|
Datasheet |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 3 | 1.5, 1.7, 1.3 | -14dB, -11.7dB, -18.5dB | 24.6dBi, 29.2dBi, 28.5dBi | - | Cable - 60mm | U.FL | - | - | - | Surface Mount | 0.272" (6.90mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
ANT-2.4-ID-2000-SMARF ANT 2.4GHZ WHIP STR BRKT 2M |
190 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
TD.66.AH31BLADE WIDEBAND 600-6000MHZ 5G/4G |
108 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | 1.8dBi, 1.6dBi, 2.6dBi, 3.9dBi, 2.5dBi, 3.9dBi, 4.4dBi, 5.4dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 9.016" (229.00mm) | 4G, 5G, Cat-M, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA, Wi-Fi |
|
|
ANT-916-ID-2000-SMARF ANT 916MHZ WHIP STR BRKT 2M |
145 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
2118879-2FPC ANTENNA,CABLE,SMA,690-2700MH |
727 |
|
Datasheet |
- | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | SMA | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|
AGGP.35F.07.0060ARF ANT 1.575GHZ CER PATCH MHF1 |
282 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 1dBic, 0.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.146" (3.70mm) | GLONASS, GNSS, GPS |
|
AGGBP.SLS.35A.07.0060A2 IN 1 PERMANENT MOUNT GPS (1M R |
563 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

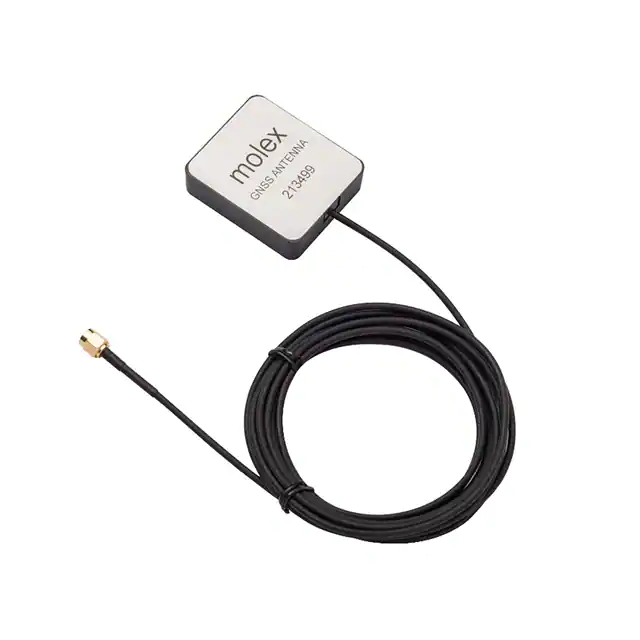

2134993000GNSS EXT ANTENNA MAG MNT 3.0M CA |
169 |
|
Datasheet |
213499 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Module | 3 | - | -10dB | -1.7dBi, -0.4dBi, -1.4dBi | - | Cable - 3m | SMA Male | - | - | - | Magnetic | 0.657" (16.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TANGO21/0.3M/SMAM/S/S/26RF ANT 1.575GHZ MOD SMA PAN MT |
436 |
|
Datasheet |
TANGO 21 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 28dB | - | LNA | SMA Male | - | - | - | Panel Mount | 0.547" (13.90mm) | GPS |
|

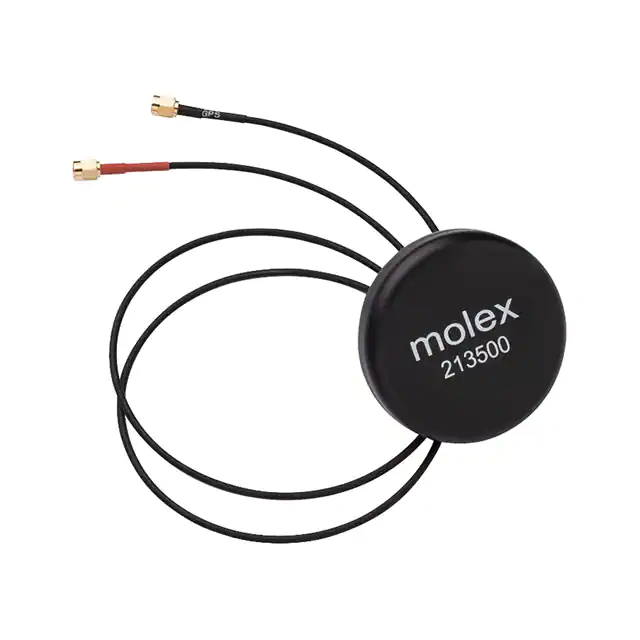

21350005002-IN-1 LTE / GPS EXT ANTENNA 500 |
364 |
|
Datasheet |
213500 | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.575GHz, 2.2GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz | Module | 3 | - | -5dB, 1.5dB | 0.77dBi, 0.77dBi, 3.73dBi | - | Cable - 500mm | SMA Male (2) | - | - | - | Adhesive, Panel Mount | 0.587" (14.90mm) | LTE, GPS |
|
AEACBK081014-S6984G/ LTE SCREW MOUNT ANTENNA |
293 |
|
Datasheet |
AEAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dome | 2 | 3 | - | 3dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | 2G, 3G, 4G, LTE |
|
A24-HASM-525RF ANT 2.4GHZ WHP TILT RP-SMA 6" |
351 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 2.1dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 5.394" (137.00mm) | - |
|
ANT-GNCP-C25L15100RF ANT GNSS GPS L1L5 25X25 LNA |
159 |
|
Datasheet |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.164GHz ~ 1.189GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8, 1.3, 1.3, 1.2 | -11.2dB, -18.1dB, -18.1dB, -20.7dB | 26.8dBi, 25.3dBi, 26.6dBi, 24.4dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
|
MA322.A.001COMET 2-IN-1 2*5G/4G MIMO ADHES |
242 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 3.55GHz, 3.75GHz, 4.7GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 10 | - | - | 1.1dBi, 2dBi, 2.2dBi, -0.4dBi, 4.6dBi, 4.2dBi, 1.8dBi, 2.4dBi, 4dBi, 4.6dBi | 2 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.709" (18.00mm) | 4G, 5G, HSPA, HSPA+, LTE, NR, WCDMA |
|

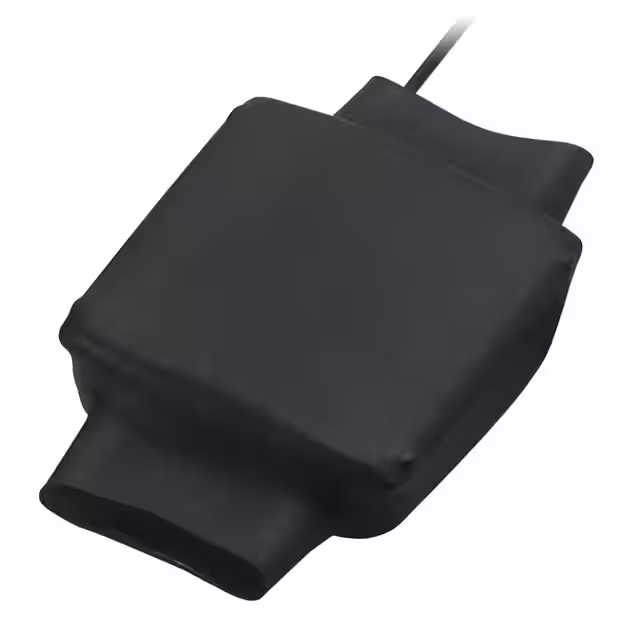

ISA.05.A.033822RF ANT 915MHZ MOD IPEX MHFHT ADH |
1,035 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | 3 | -11dB | 5.1dBi | 5 W | - | I-PEX MHFHT | IP65 | - | - | Adhesive | 0.433" (11.00mm) | ISM |
