Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25SEP6R8M+TSSCAP ALUM POLY 6.8UF 20% 25V TH Panasonic Electronic Components |
2,331 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 6.8 µF | ±20% | 25 V | 80mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
-Photo-Taped-Size-F.jpg)
|

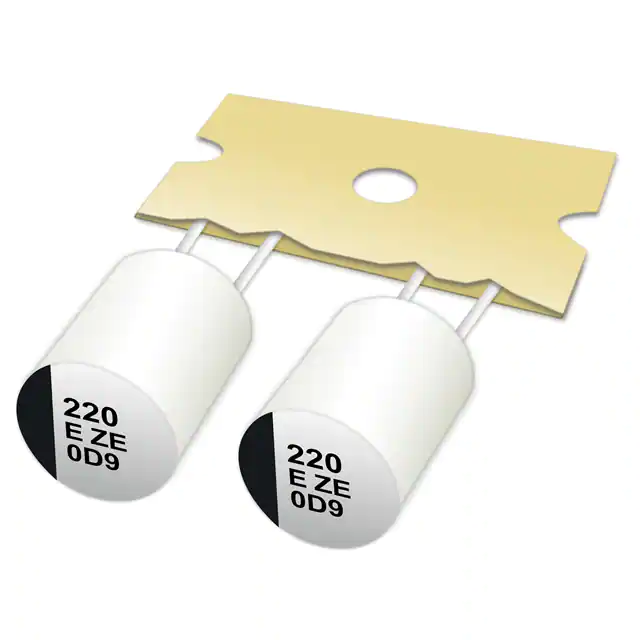

EEH-AZE1V151BCAP ALUM HYBRID 150UF 20% 35V TH Panasonic Electronic Components |
1,583 |
|
Datasheet |
ZE | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 105 mA @ 100 Hz | 700 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEH-ZC1J470PCAP ALUM HYBRID 47UF 20% 63V SMD Panasonic Electronic Components |
1,130 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
10SVPS68MCAP ALUM POLY 68UF 20% 10V SMD Panasonic Electronic Components |
483 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
6SVPC820MCAP ALUM POLY 820UF 20% 6.3V SMD Panasonic Electronic Components |
9,197 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-CS1D100RCAP ALUM POLY 10UF 20% 20V SMD Panasonic Electronic Components |
9,012 |
|
Datasheet |
SP-Cap CS | Tape & Reel (TR) | Not For New Designs | Polymer | 10 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | - | Surface Mount |
|
16SEPC180M+TSSCAP ALUM POLY 180UF 20% 16V TH Panasonic Electronic Components |
1,923 |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 218 mA @ 120 Hz | 4.36 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
6SVPS47MCAP ALUM POLY 47UF 20% 6.3V SMD Panasonic Electronic Components |
1,094 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
2R5SVPE330MCAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components |
458 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
20SEP100MCAP ALUM POLY 100UF 20% 20V TH Panasonic Electronic Components |
124 |
|
Datasheet |
OS-CON™, SEP | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 24mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 166 mA @ 120 Hz | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
