Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SEPF270M+TSSCAP ALUM POLY 270UF 20% 16V TH Panasonic Electronic Components |
1,450 |
|
Datasheet |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
-Photo-Taped-Size-G.jpg)
|

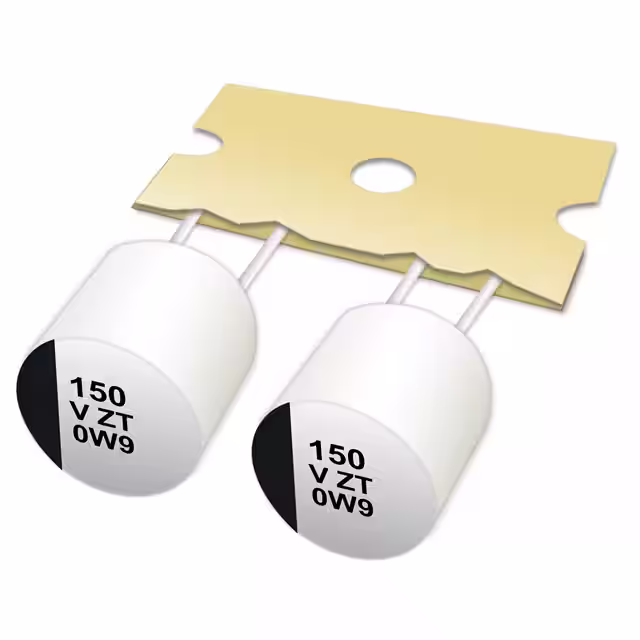

EEH-AZT1E331BCAP ALUM HYBRID 330UF 20% 25V TH Panasonic Electronic Components |
869 |
|
Datasheet |
ZT | Cut Tape (CT) | Active | Hybrid | 330 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEF-HX0E331R9CAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components |
252 |
|
Datasheet |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
16SEP82MCAP ALUM POLY 82UF 20% 16V TH Panasonic Electronic Components |
200 |
|
Datasheet |
OS-CON™, SEP | Bulk | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 106 mA @ 120 Hz | 2.12 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
25SVPD22MCAP ALUM POLY 22UF 20% 25V SMD Panasonic Electronic Components |
1,059 |
|
Datasheet |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 48mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 29 mA @ 120 Hz | 580 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
10SVPC330MCAP ALUM POLY 330UF 20% 10V SMD Panasonic Electronic Components |
2,178 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 173 mA @ 120 Hz | 3.46 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZK1E560URCAP ALUM HYBRID 56UF 20% 25V SMD Panasonic Electronic Components |
179 |
|
Datasheet |
ZKU | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 127.5 mA @ 100 Hz | 850 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
10SVP150MCAP ALUM POLY 150UF 20% 10V SMD Panasonic Electronic Components |
1,887 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
35SEPF39MCAP ALUM POLY 39UF 20% 35V TH Panasonic Electronic Components |
151 |
|
Datasheet |
OS-CON™, SEPF | Bulk | Active | Polymer | 39 µF | ±20% | 35 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZK1E151XVCAP ALUMHYB 150UF 20% 25V SMD Panasonic Electronic Components |
3,611 |
|
Datasheet |
ZK, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
