Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG1083.332NLFIXED IND 3.3UH 28A 2.2 MOHM SMD Pulse Electronics |
705 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±20% | 28 A | 37A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
PM2205.102NLTFIXED IND 1UH 20A 4.52 MOHM SMD Pulse Electronics |
3,031 |
|
Datasheet |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 20 A | 23A | Shielded | 4.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
PM2205.122NLTFIXED IND 1.2UH 18A 5.83MOHM SMD Pulse Electronics |
1,546 |
|
Datasheet |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 18 A | 22A | Shielded | 5.83mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PE-92105NLFIXED IND 145UH 3A 87 MOHM TH Pulse Electronics |
1,787 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - |
|

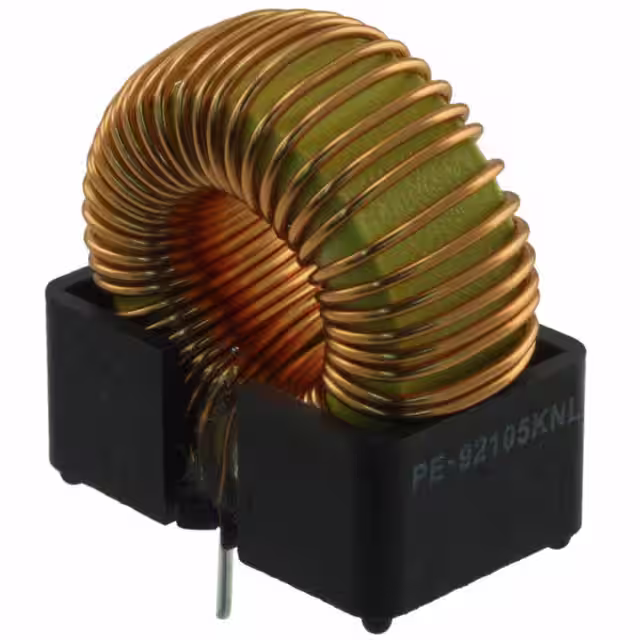

PE-92105KNLFIXED IND 145UH 3A 87 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
PG0426.102NLTFIXED IND 1UH 13A 8 MOHM SMD Pulse Electronics |
325 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 13 A | 22A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

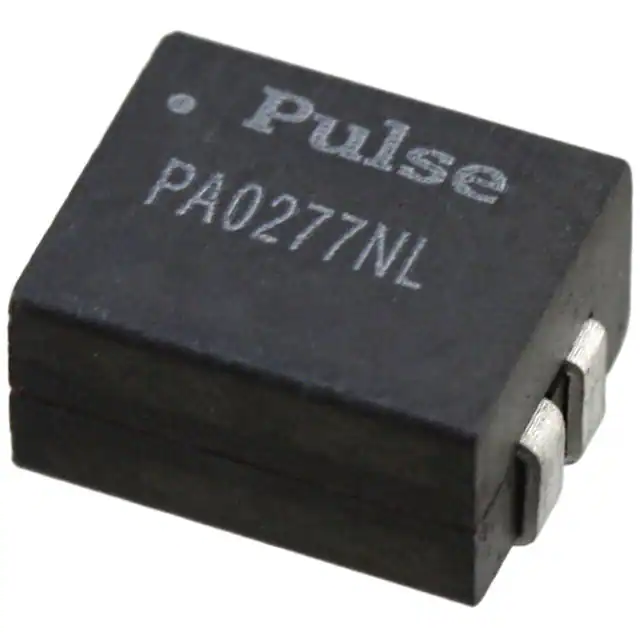

PA0277NLTFIXED IND 700NH 10.7A 95MOHM SMD Pulse Electronics |
1,157 |
|
Datasheet |
VOLTA 2 | Nonstandard | Tape & Reel (TR) | Active | - | - | 700 nH | ±20% | 10.7 A | 12.6A | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.350" L x 0.250" W (8.89mm x 6.35mm) | 0.177" (4.50mm) |
|

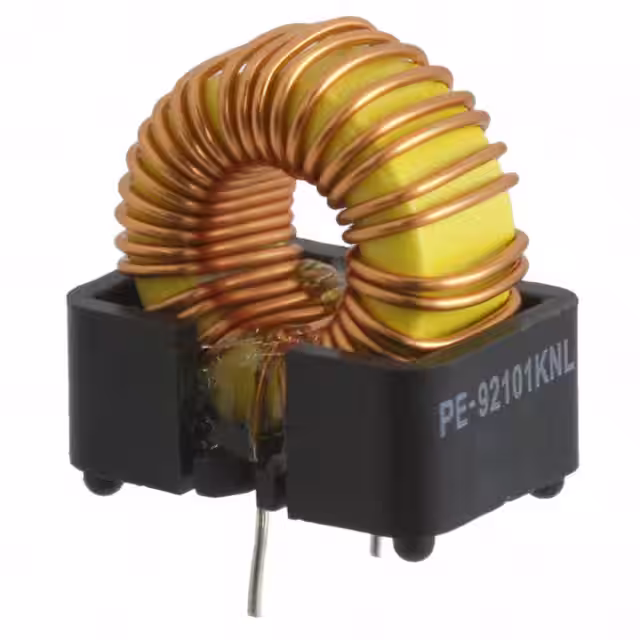

PE-92101KNLFIXED IND 50UH 2.6A 71 MOHM TH Pulse Electronics |
1,444 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 50 µH | ±20% | 2.6 A | - | Unshielded | 71mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.700" (17.78mm) |
|

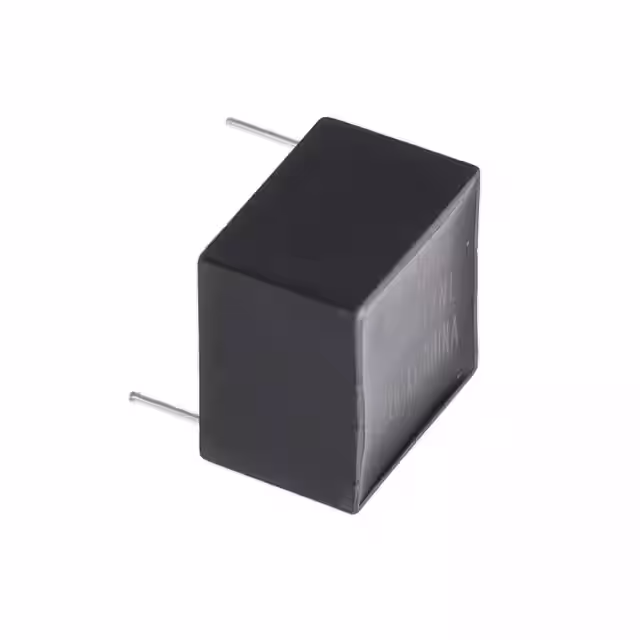

PE-53817NLFIXED IND 375UH 360MA 1.3 OHM TH Pulse Electronics |
723 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 375 µH | ±20% | 360 mA | - | Shielded | 1.3Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
|
PG0426.221NLTFIXED IND 220NH 26A 2.2 MOHM SMD Pulse Electronics |
4,930 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 26 A | 40A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
