Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

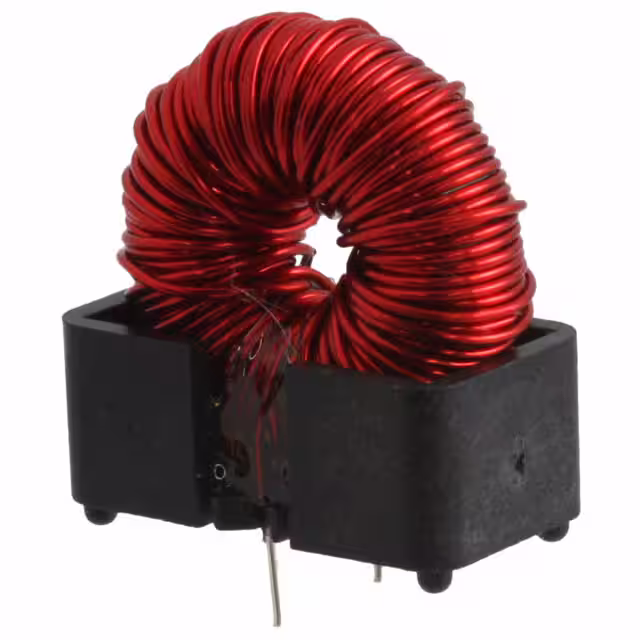

PE-53935NLFIXED IND 250UH 1.5A 230 MOHM TH Pulse Electronics |
814 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53826SNLFIXED IND 377UH 680MA 1 OHM SMD Pulse Electronics |
880 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 377 µH | ±20% | 680 mA | - | Shielded | 1Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PD0120.223NLFIXED IND 23.1UH 5.3A 35.5 MOHM Pulse Electronics |
1,070 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 23.1 µH | ±10% | 5.3 A | 6.8A | Unshielded | 35.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PD0120.183NLFIXED IND 18.7UH 6.4A 25.5 MOHM Pulse Electronics |
1,066 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 18.7 µH | ±10% | 6.4 A | 7.6A | Unshielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PD0120.702NLFIXED IND 7.2UH 8.6A 10 MOHM SMD Pulse Electronics |
1,045 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±10% | 8.6 A | 12.6A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|

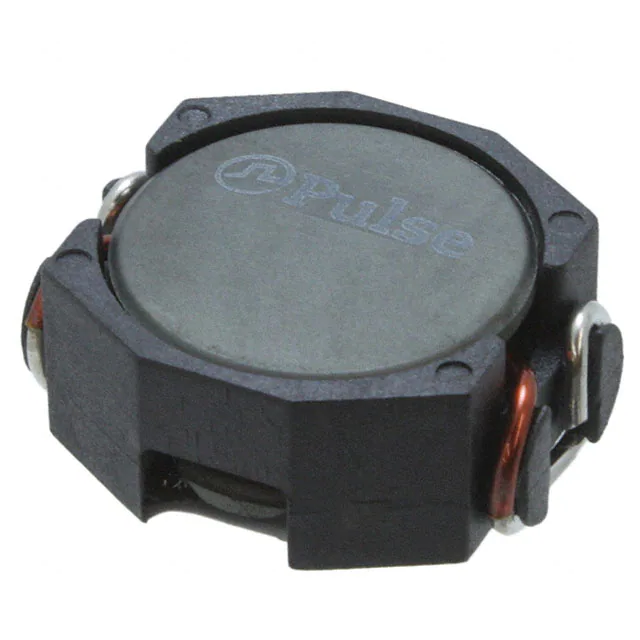

PB2020.153NLTFIXED IND 15UH 9.7A 13 MOHM SMD Pulse Electronics |
1,100 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 9.7 A | 18A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PB2020.332NLFIXED IND 3.3UH 18.3A 3.9MOHM SM Pulse Electronics |
1,010 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 3.3 µH | ±20% | 18.3 A | 35A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
|
PB2020.103NLTFIXED IND 10UH 12.6A 7.8MOHM SMD Pulse Electronics |
697 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 12.6 A | 20A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

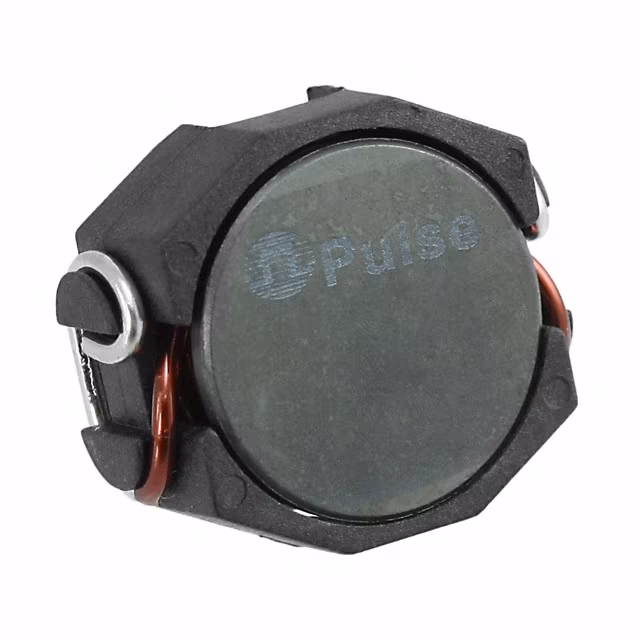

PB2020.103NLFIXED IND 10UH 12.6A 7.8MOHM SMD Pulse Electronics |
517 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 10 µH | ±20% | 12.6 A | 20A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

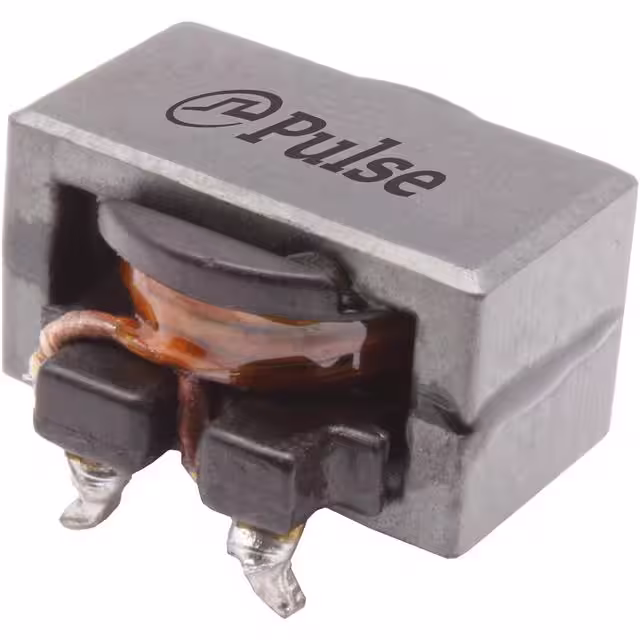

PH9499.951CNLTINDUCTOR 0.95UH 3.5A ER11 SMD Pulse Electronics |
400 |
|
Datasheet |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±6% | 3.5 A | 28A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
