Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-51591NLFIXED IND 20UH 2A 60 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 20 µH | - | 2 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.640" Dia x 0.280" W (16.26mm x 7.11mm) | - |
|
|
PE-52648NLFIXED IND 470UH 900MA 1.26OHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
|
PE-92117NLFIXED IND 55UH 10A 13 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-53815NLFIXED IND 26UH 840MA 200 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 26 µH | ±20% | 840 mA | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 0.300" (7.62mm) |
|
|
PE-50503NLFIXED IND 500UH 1.75A 350MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Obsolete | Toroidal | - | 500 µH | - | 1.75 A | - | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.140" Dia (28.95mm) | 0.665" (16.89mm) |
|

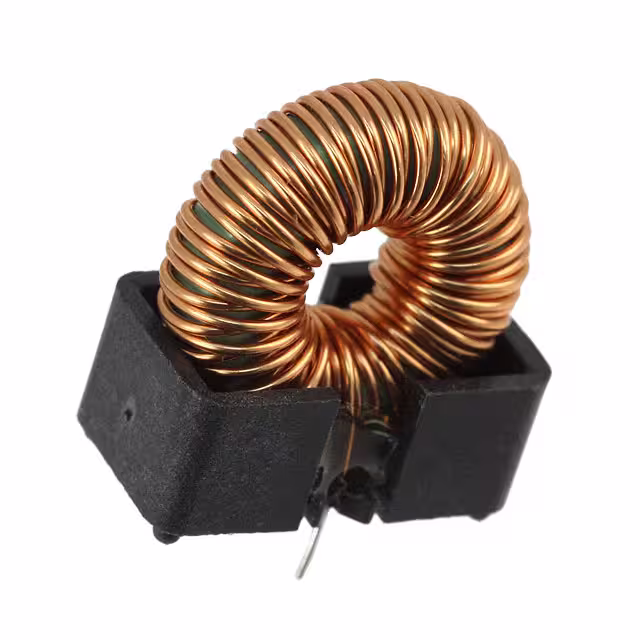

PE-54038NLTFIXED IND 77UH 2.7A 90 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PE-92113NLFIXED IND 170UH 5A 50 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 170 µH | ±20% | 5 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-50508NLFIXED IND 2MH 1.5A 750 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | - | 2 mH | - | 1.5 A | - | Unshielded | 750mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.416" Dia (35.96mm) | 0.850" (21.59mm) |
|
|
PG0220.451NLFIXED IND 450NH 25.5A 1.85 MOHM Pulse Electronics |
0 |
|
Datasheet |
PG0220NL | Radial, Horizontal (Open) | Tray | Obsolete | - | - | 450 nH | ±15% | 25.5 A | 35A | Unshielded | 1.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.362" (9.20mm) |
|
|
PA2080.141NLFIXED IND 140NH 40A 0.49 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | 140 nH | ±10% | 40 A | 80A | Unshielded | 0.49mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | 0.350" (8.90mm) |
