Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-92108NLFIXED IND 67UH 3.6A 45 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - |
|
|
PE-92107NLFIXED IND 450UH 3A 200 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 450 µH | ±20% | 3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-92115NLFIXED IND 95UH 7A 25 MOHM TH Pulse Electronics |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 95 µH | ±20% | 7 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
PF0504.403NLTFIXED IND 40UH 4A 50 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 40 µH | ±20% | 4 A | 8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
PE-53801SNLFIXED IND 259UH 130MA 3.4OHM SMD Pulse Electronics |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 259 µH | ±20% | 130 mA | - | Shielded | 3.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
P1174.604NLTFIXED IND 600UH 120MA 2.55OHM SM Pulse Electronics |
0 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 µH | ±20% | 120 mA | 120mA | Shielded | 2.55Ohm Max | - | 3.7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.222NLTFIXED IND 2.2UH 1.7A 18 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 18mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
PG0434.142NLTFIXED IND 1.4UH 27A 2.1 MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±20% | 27 A | 28A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|

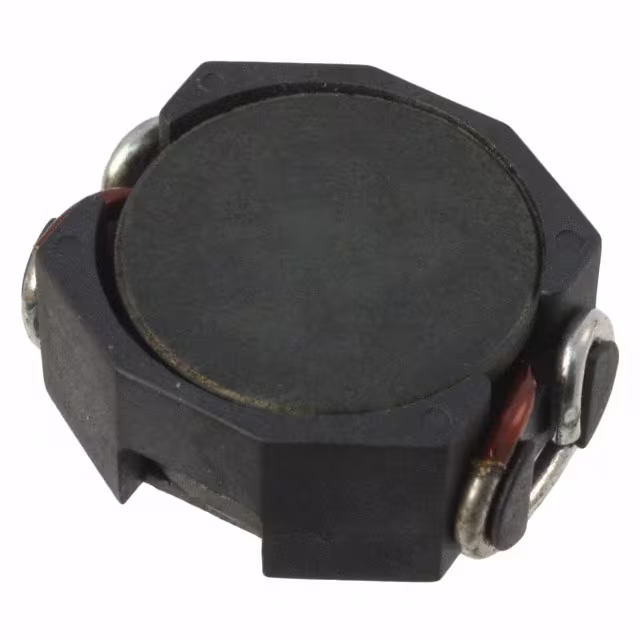

PB2020.102NLTFIXED IND 1.2UH 23.7A 2.2MOHM SM Pulse Electronics |
0 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 23.7 A | 55A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PF0580.393NLTFIXED IND 39UH 550MA 490MOHM SMD Pulse Electronics |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±15% | 550 mA | 550mA | Unshielded | 490mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
