Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SEP150M+TCAP ALUM POLY 150UF 20% 16V TH Panasonic Electronic Components |
650 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 16 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
16SEPG270MCAP ALUM POLY 270UF 20% 16V TH Panasonic Electronic Components |
505 |
|
Datasheet |
OS-CON™, SEPG | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 290 mA @ 120 Hz | 5.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | - | Through Hole |
|
|
10SEP270M+TCAP ALUM POLY 270UF 20% 10V TH Panasonic Electronic Components |
1,145 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
EEH-ZC1J820PCAP ALUM HYBRID 82UF 20% 63V SMD Panasonic Electronic Components |
276 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
6SEP330M+TCAP ALUM POLY 330UF 20% 6.3V TH Panasonic Electronic Components |
616 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
-Photo-Taped-Size-F.jpg)
|

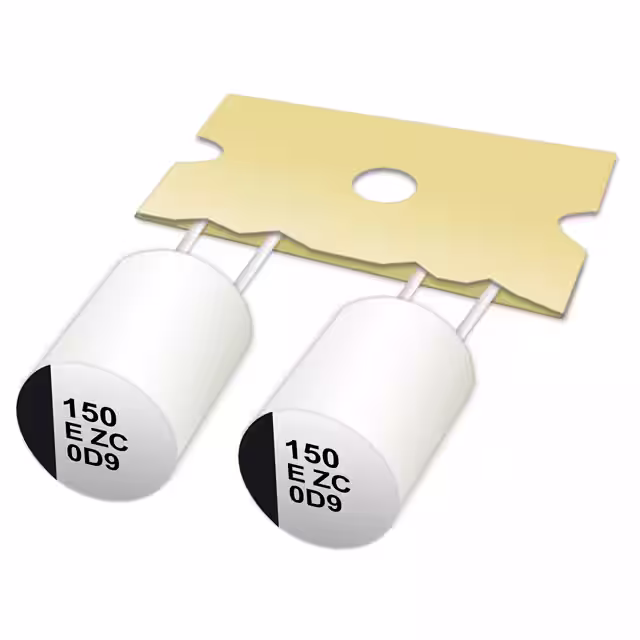

EEH-AZC1J470BCAP ALUM HYBRID 47UF 20% 63V TH Panasonic Electronic Components |
1,563 |
|
Datasheet |
ZC | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 1.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZC1V151BCAP ALUM HYBRID 150UF 20% 35V TH Panasonic Electronic Components |
1,508 |
|
Datasheet |
ZC | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEH-ZT1J680PCAP ALUM HYBRID 68UF 20% 63V SMD Panasonic Electronic Components |
824 |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
20SVPA47MCAP ALUM POLY 47UF 20% 20V SMD Panasonic Electronic Components |
2,754 |
|
Datasheet |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 33mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 131.5 mA @ 120 Hz | 2.63 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
25SVPK82MCAP ALUM POLY 82UF 20% 25V SMD Panasonic Electronic Components |
127 |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 48 mA @ 120 Hz | 960 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
