Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO2223A-X001OPTOISOLTR 5.3KV PWR TRIAC 8DIP |
1,600 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Triac, Power | No | 1 | 5300Vrms | 600 V | 210V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP | cUR, UR, VDE |
|
|
VO2223OPTOISOLTR 5.3KV PWR TRIAC 8DIP |
408 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Triac, Power | No | 1 | 5300Vrms | 600 V | 210V/µs (Typ) | 10mA | 900 mA | 25mA | - | 1.3V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP | cUR, UR |
|
|
VO2223B-X0011A, 600V, PHOTOTRIAC, THROUGHHOL |
151 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Triac, Power | No | 1 | 4470Vrms | 600 V | 600V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP | cUR, UR, VDE |
|
MOC3162SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
860 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
IL410-X007OPTOISOLATOR 5.3KV TRIAC |
1,935 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CSA, UR |
|
|
IL4208-X009OPTOISOLATOR 5.3KV TRIAC |
1,692 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CQC, CSA, cUR, UR |
|
QTT3223ST17 PIN RANDOM-PHASEHIGH POWER TRI |
1,901 |
|
Datasheet |
QTX223 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | No | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 1.2 A | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
|
VO4256H-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
3,400 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 5kV/µs | 2mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, FIMKO, UR |
|
FODM3083OPTOISOLATOR 3.75KV TRIAC 4MFP |
4,034 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
|
|
QTT3213ST17 PIN ZERO-CROSSING HIGH POWER T |
3,422 |
|
Datasheet |
QTX213 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 1.2 A | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
|
FOD4108SDOPTOISOLATOR 5KV TRIAC 6SMD |
1,934 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
FOD4216SDOPTOISOLATOR 5KV TRIAC 6SMD |
3,777 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL |
|
|
IL420-X009TOPTOISOLATOR 5.3KV TRIAC |
1,960 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, cUR, UR |
|
|
IL4208-X007OPTOISOLATOR 5.3KV TRIAC |
450 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CQC, CSA, cUR, UR |
|

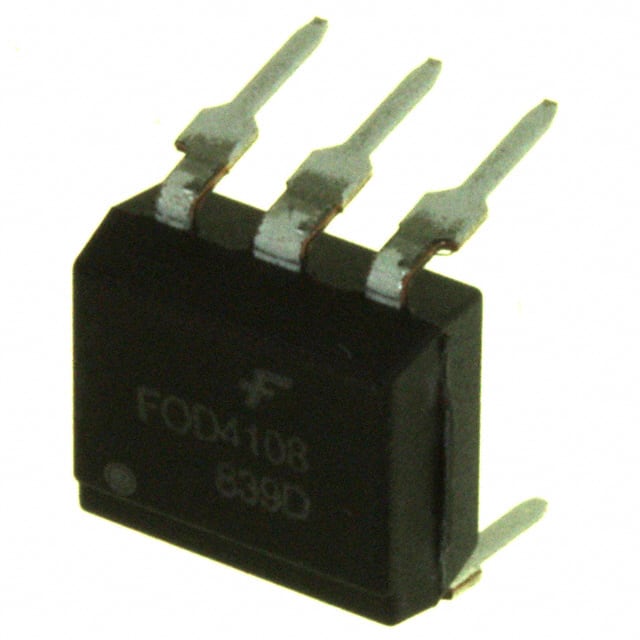

FOD4108OPTOISOLATOR 5KV TRIAC 6DIP |
5,137 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
|
IL4108-X009TOPTOISOLATOR 5.3KV TRIAC |
3,967 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CSA, UR |
|
|
IL4208-X009TOPTOISOLATOR 5.3KV TRIAC |
2,040 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, cUR, UR |
.jpg)
|
VO4258HOPTOISOLATOR 5.3KV TRIAC 6DIP |
2,372 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 5kV/µs | 2mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, cUR, FIMKO, UR |
|
FOD420SDVOPTOISOLATOR 5KV TRIAC 6SMD |
2,285 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|
|
IL420-X007OPTOISOLATOR 5.3KV TRIAC |
1,976 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CQC, CSA, cUR, UR |
