Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP267J(EX36 PB-F TRIAC COUPLER LOW TRIGG |
240 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|

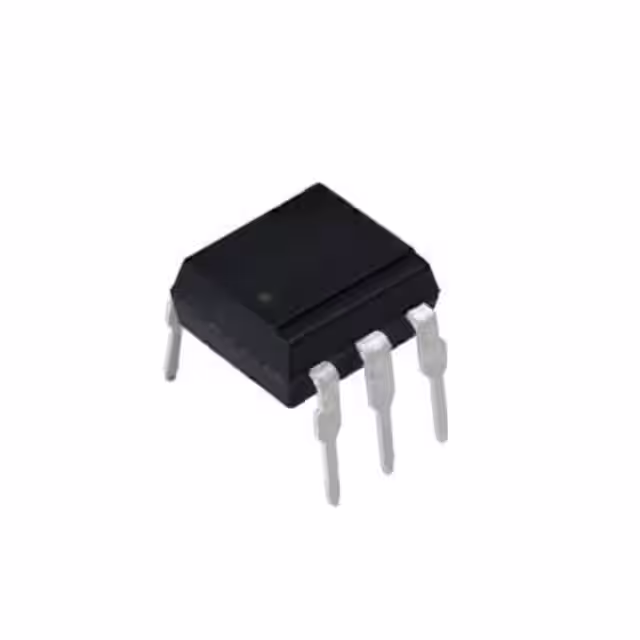

MOC3012VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
798 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
MOC3010SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
1,188 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3052XOPTOISOLATOR 5.3KV TRIAC 6DIP |
1,013 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 1kV/µs | 10mA | - | 100µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | - | UR, VDE |
|
QTM3043T1MINI-FLAT PACKAGE ZERO CROSSING |
5,501 |
|
Datasheet |
QTM304X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 400 V | 1kV/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
FODM3012-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
2,999 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
.JPG)
|
EL3023S1(TA)-VOPTOISOLATOR 5KV TRIAC 6SMD |
928 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 5mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
VOT8121AB-T3OPTOCOUPLER PHOTOTRIAC 800V SMD4 |
1,990 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 1kV/µs | 10mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
|
VOT8121AB-TOPTOCOUPLER PHOTOTRIAC 800V SMD4 |
955 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 1kV/µs | 10mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
VOT8026AD-VOPTOCOUPLER PHOTOTRIAC 800V DIP6 |
1,993 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP | CQC, cUL, UL, VDE |
|
VOT8125AD-VOPTOCOUPLER PHOTOTRIAC 800V DIP5 |
1,927 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP | CQC, cUL, UL, VDE |
|
|
VOT8125AG-VOPTOCPLR PHOTOTRIAC 800V DIP5 GW |
1,870 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP | CQC, cUL, UL, VDE |
|
|
VOT8024AB-T3PHOTOTRIAC 800V ZC SMD4 270 |
998 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
VOT8026AG-VOPTOCPLR PHOTOTRIAC 800V DIP6 GW |
483 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP | CQC, cUL, UL, VDE |
,-Gull-Wing.jpg)
|

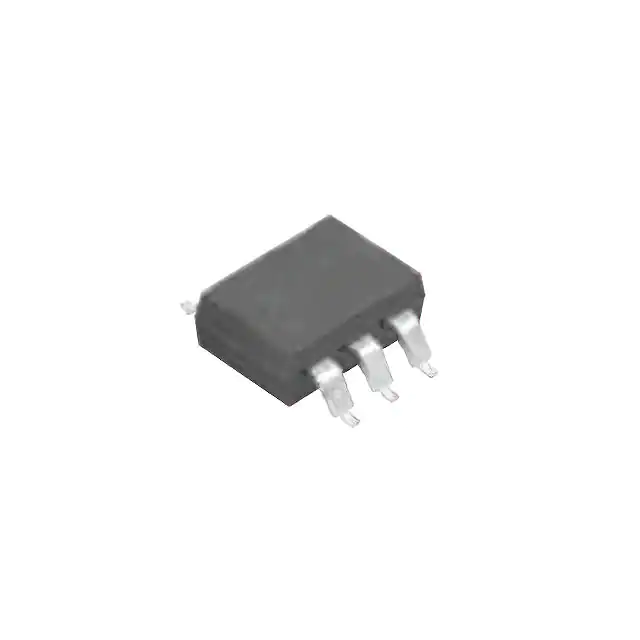

APT1222WAOPTOISOLATOR 5KV TRIAC 6DIP |
469 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
|
VOT8025AG-VOPTOCPLR PHOTOTRIAC 800V DIP5 GW |
2,000 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP | CQC, cUL, UL, VDE |
|
|
VOT8024AB-VT1PHOTOTRIAC 800V ZC SMD4 90 VDE |
2,000 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
|
VOT8024AB-VT3PHOTOTRIAC 800V ZC SMD4 270 VDE |
2,000 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
|
VOT8025AD-VOPTOCOUPLER PHOTOTRIAC 800V DIP5 |
913 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP | CQC, cUL, UL, VDE |
|
|
MOC3083SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
625 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
