Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3081SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
380 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
QTM3063T1MINI-FLAT PACKAGE ZERO CROSSING |
29,306 |
|
Datasheet |
QTM306X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
VO3052-X016OPTOISOLATOR 5.3KV TRIAC 6DIP |
2,000 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR, VDE |
|
|
MOC3072SM6-PIN DIP RAND. PHASE TRIAC OUTP |
920 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 10mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3043SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
328 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
VO3063-X006OPTOISOLATOR 5.3KV TRIAC 6DIP |
978 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 1.5kV/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR |
|
MOC3072TVMOPTO TRIAC |
920 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 10mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-PDIP | UL |
|
|
VO3063-X016OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,730 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 1.5kV/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR, VDE |
|
FODM3023R2-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
5,065 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 400 V | 10V/µs (Typ) | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
MOC3042VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
101 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|

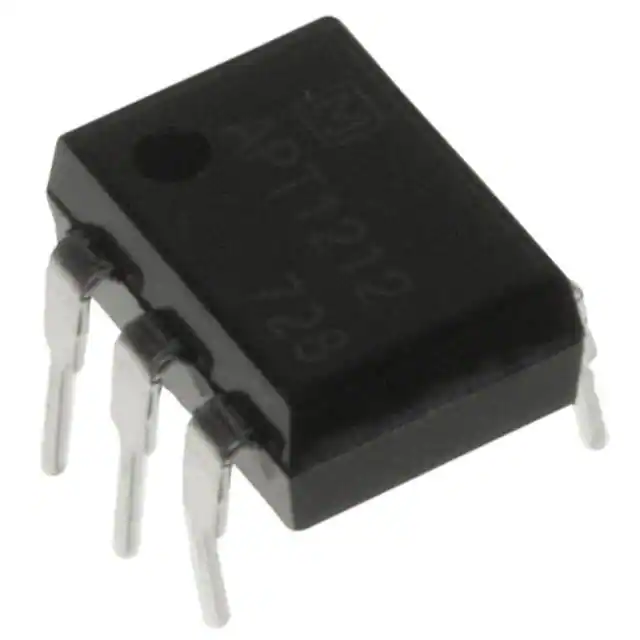

APT1212OPTOISOLATOR 5KV TRIAC 6DIP |
975 |
|
Datasheet |
APT | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | cUR, VDE |
|
|
MOC3073SVM6PW RP TRIAC SMD VDE |
1,322 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 6mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
APT1211WOPTOISOLATOR 5KV TRIAC 4DIP |
971 |
|
Datasheet |
APT | 4-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Through Hole | 4-DIP | cUR, VDE |
,-Gull-Wing.jpg)
|
APT1222WAYOPTOISOLATOR 5KV TRIAC 6DIP |
988 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
|
APT1232WAYPHOTOTRIAC COUPLER 600V 6DIP |
664 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
APT1212AXOPTOISOLATOR 5KV TRIAC 6DIP |
937 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
|
APT1222AXOPTOISOLATOR 5KV TRIAC 6DIP |
928 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
|
MOC3162MOPTOISOLATOR 4.17KV TRIAC 6DIP |
113 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
VO2223-X001OPTOISOLTR 5.3KV PWR TRIAC 8DIP |
1,273 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Triac, Power | No | 1 | 5300Vrms | 600 V | 210V/µs (Typ) | 10mA | 900 mA | 25mA | - | 1.3V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP | cUR, UR, VDE |
|
IL420-X009OPTOISOLATOR 5.3KV TRIAC |
1,877 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CQC, CSA, cUR, UR |
